Please send RFQ , we will respond immediately.

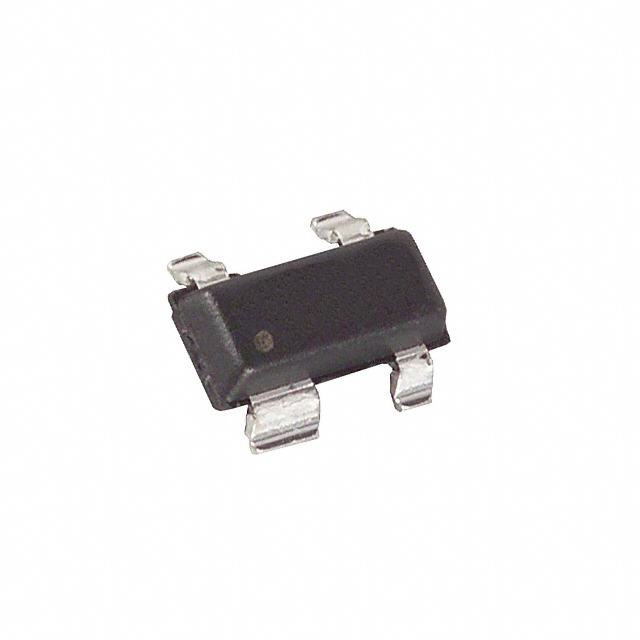

| Part Number | MAX6315US26D3+GC1 | MAX6315US26D3+TGC1 | MAX6315US29D3+GC1 | MAX6315US26D1+GC1 | MAX6315US26D2+GC1 | MAX6315US26D3+G11 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 2.63V | 2.63V | 2.93V | 2.63V | 2.63V | 2.63V |
| Output | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector |
| Reset | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low |
| Reset Timeout | 140ms Minimum | 140ms Minimum | 140ms Minimum | 1ms Minimum | 20ms Minimum | 140ms Minimum |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-253-4, TO-253AA | TO-253-4, TO-253AA | TO-253-4, TO-253AA | TO-253-4, TO-253AA | TO-253-4, TO-253AA | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-143-4 | SOT-143-4 | SOT-143-4 | SOT-143-4 | SOT-143-4 | SOT-143-4 |
