Please send RFQ , we will respond immediately.

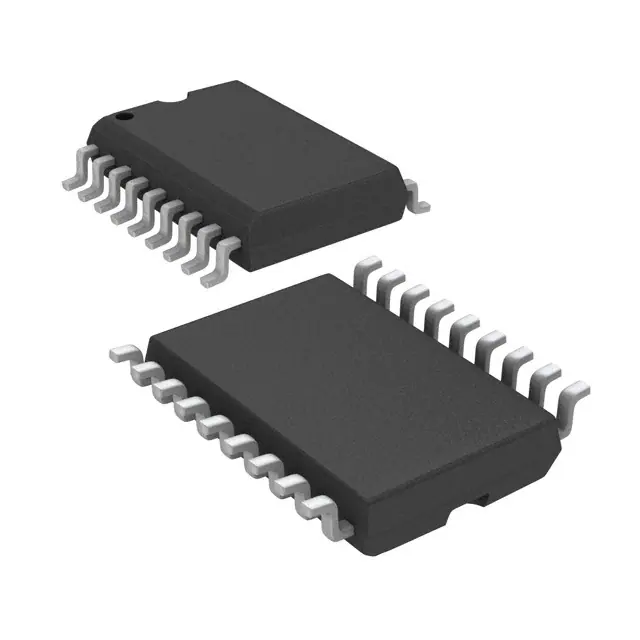

| Part Number | MAX620CWN+ | MAX620EWN+ | MAX620CWN+T | MAX620CPN+ | MAX620CWN |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Driven Configuration | High-Side | High-Side | High-Side | High-Side | High-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 4 | 4 | 4 | 4 | 4 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16.5V | 4.5V ~ 16.5V | 4.5V ~ 16.5V | 4.5V ~ 16.5V | 4.5V ~ 16.5V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | - | - | - | - | - |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - |
| Rise / Fall Time (Typ) | 1.7µs, 2.5µs | 1.7µs, 2.5µs | 1.7µs, 2.5µs | 1.7µs, 2.5µs | 1.7µs, 2.5µs |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) | 18-SOIC (0.295", 7.50mm Width) | 18-SOIC (0.295", 7.50mm Width) | 18-DIP (0.300", 7.62mm) | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC | 18-SOIC | 18-SOIC | 18-PDIP | 18-SOIC |
