MAX5893EGK+TD
  • Share:

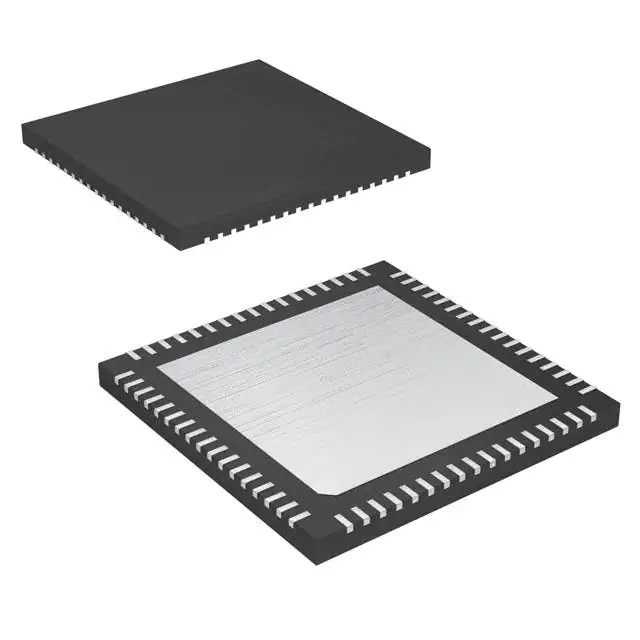

Analog Devices Inc./Maxim Integrated MAX5893EGK+TD

Manufacturer No:
MAX5893EGK+TD
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
MAX5893EGK+TD Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT A-OUT 68QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:2
Settling Time:11µs (Typ)
Output Type:Current - Unbuffered
Differential Output:Yes
Data Interface:Parallel
Reference Type:External, Internal
Voltage - Supply, Analog:1.71V ~ 1.89V, 3.135V ~ 3.465V
Voltage - Supply, Digital:1.71V ~ 1.89V
INL/DNL (LSB):±1, ±0.5
Architecture:Oversampling Interpolating DAC
Operating Temperature:-40°C ~ 85°C
Package / Case:68-VFQFN Exposed Pad
Supplier Device Package:68-QFN (10x10)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$23.85
14

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX5893EGK+TD MAX5895EGK+TD   MAX5898EGK+TD   MAX5894EGK+TD   MAX5873EGK+TD   MAX5890EGK+TD   MAX5891EGK+TD   MAX5893EGK+D
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Obsolete Active Active Active Active
Number of Bits 12 16 16 14 12 14 16 12
Number of D/A Converters 2 2 2 2 2 1 1 2
Settling Time 11µs (Typ) 11µs (Typ) 11µs (Typ) 11µs (Typ) 14µs (Typ) 11µs (Typ) 11µs (Typ) 11µs (Typ)
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output Yes Yes Yes Yes Yes Yes Yes Yes
Data Interface Parallel Parallel Parallel Parallel Parallel LVDS - Parallel LVDS - Parallel Parallel
Reference Type External, Internal External, Internal External, Internal External, Internal External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V
Voltage - Supply, Digital 1.71V ~ 1.89V 1.71V ~ 1.89V 1.71V ~ 1.89V 1.71V ~ 1.89V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V, 3.135V ~ 3.465V 1.71V ~ 1.89V
INL/DNL (LSB) ±1, ±0.5 ±3, ±1 ±3, ±1 ±1, ±0.5 ±0.2, ±0.13 ±1, ±0.5 ±3.8, ±2.8 ±1, ±0.5
Architecture Oversampling Interpolating DAC Oversampling Interpolating DAC Oversampling Interpolating DAC Oversampling Interpolating DAC Current Steering Current Steering Current Steering Oversampling Interpolating DAC
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 68-VFQFN Exposed Pad 68-VFQFN Exposed Pad 68-VFQFN Exposed Pad 68-VFQFN Exposed Pad 68-VFQFN Exposed Pad 68-VFQFN Exposed Pad 68-VFQFN Exposed Pad 68-VFQFN Exposed Pad
Supplier Device Package 68-QFN (10x10) 68-QFN (10x10) 68-QFN (10x10) 68-QFN (10x10) 68-QFN (10x10) 68-QFN (10x10) 68-QFN (10x10) 68-QFN (10x10)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
