Please send RFQ , we will respond immediately.
| Part Number | MAX5890EGK+D | MAX5891EGK+D | MAX5894EGK+D | MAX5895EGK+D | MAX5898EGK+D | MAX5890EGK+TD | MAX5893EGK+D |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 14 | 16 | 14 | 16 | 16 | 14 | 12 |
| Number of D/A Converters | 1 | 1 | 2 | 2 | 2 | 1 | 2 |
| Settling Time | 11µs (Typ) | 11µs (Typ) | 11µs (Typ) | 11µs (Typ) | 11µs (Typ) | 11µs (Typ) | 11µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Data Interface | LVDS - Parallel | LVDS - Parallel | Parallel | Parallel | Parallel | LVDS - Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V |
| INL/DNL (LSB) | ±1, ±0.5 | ±3.8, ±2.8 | ±1, ±0.5 | ±3, ±1 | ±3, ±1 | ±1, ±0.5 | ±1, ±0.5 |
| Architecture | Current Steering | Current Steering | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Current Steering | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

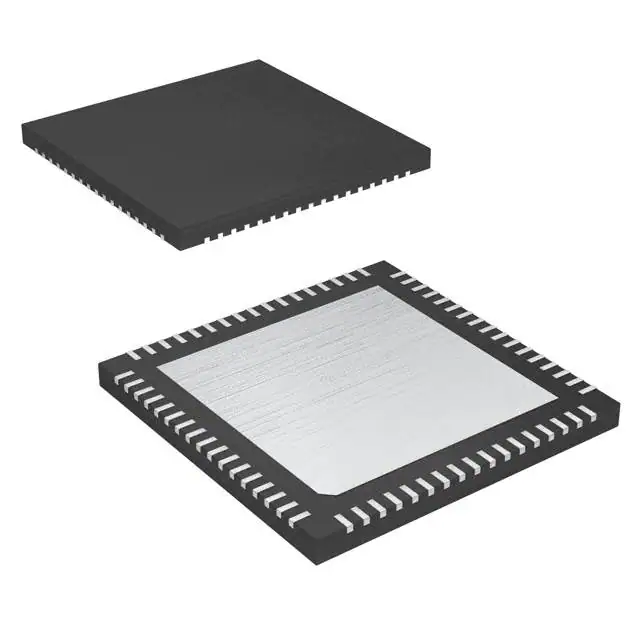

| Package / Case | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
