| Part Number | MAX5883EGM+TD | MAX5885EGM+TD | MAX5884EGM+TD | MAX5883EGM+D |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 16 | 14 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 1 |
| Settling Time | 11µs (Typ) | 11µs (Typ) | 11µs (Typ) | 11µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| INL/DNL (LSB) | ±0.3, ±0.2 | - | ±0.8, ±0.5 | ±0.3, ±0.2 |
| Architecture | Current Steering | Current Steering | Current Steering | Current Steering |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

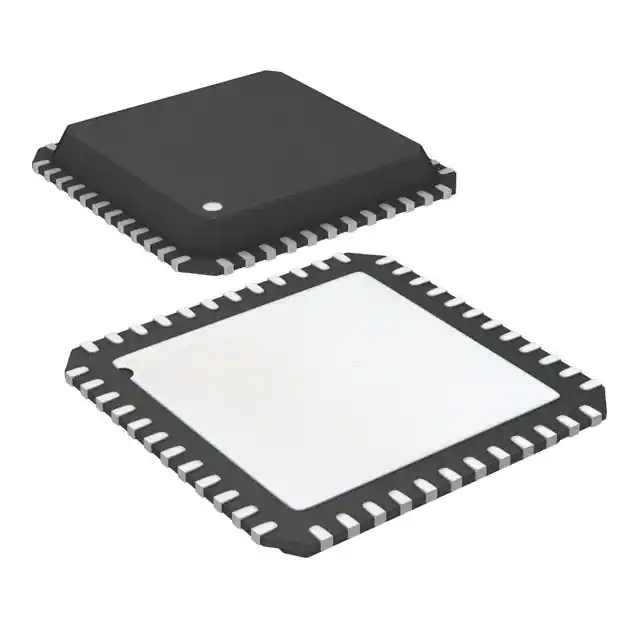

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) | 48-QFN (7x7) | 48-QFN (7x7) | 48-QFN (7x7) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
