| Part Number | MAX5875EGK+D | MAX5878EGK+D | MAX5895EGK+D | MAX5876EGK+D | MAX5875EGK+TD | MAX5873EGK+D | MAX5874EGK+D |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 12 | 16 | 12 | 14 |
| Number of D/A Converters | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Settling Time | 14ns | 14ns (Typ) | 11µs (Typ) | 14µs (Typ) | 14ns | 14ns (Typ) | 14µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V |
| INL/DNL (LSB) | ±3, ±2 | ±3, ±2 | ±3, ±1 | ±0.2, ±0.1 | ±3, ±2 | ±0.2, ±0.13 | ±1, ±0.7 |
| Architecture | Current Steering | Current Steering | Oversampling Interpolating DAC | Current Steering | Current Steering | Current Steering | Current Steering |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

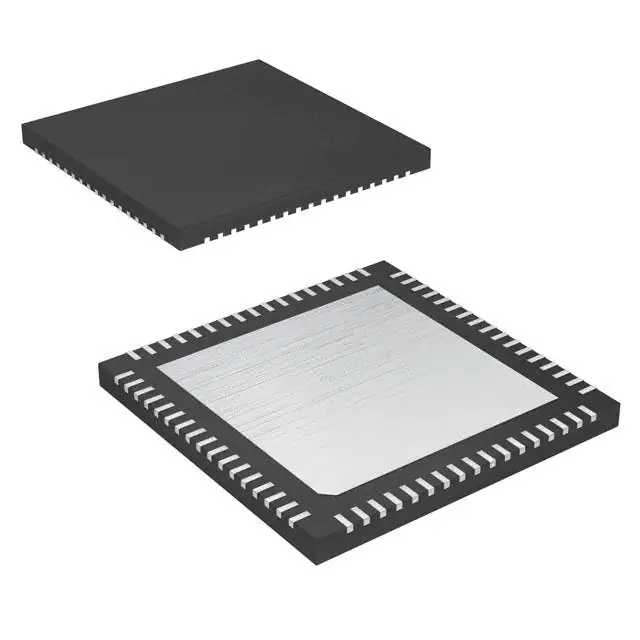

| Package / Case | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) | 68-QFN (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
