MAX5858AECM+TD
  • Share:

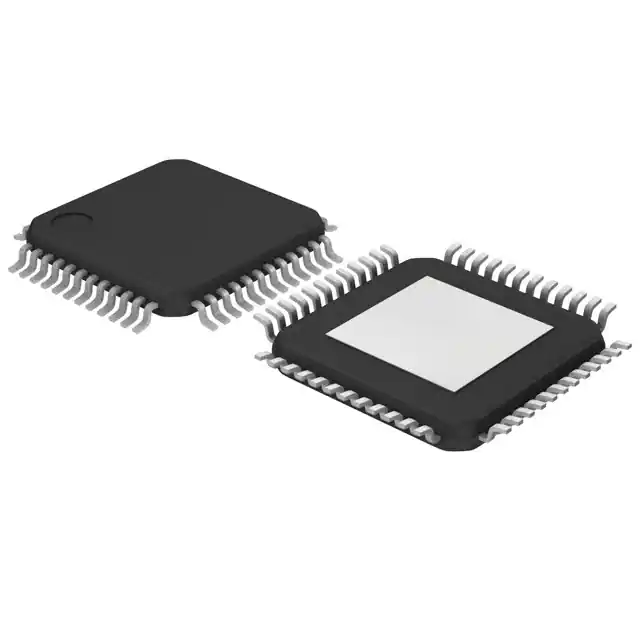

Analog Devices Inc./Maxim Integrated MAX5858AECM+TD

Manufacturer No:
MAX5858AECM+TD
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
MAX5858AECM+TD Datasheet
ECAD Model:
-
Description:
IC DAC 10BIT A-OUT 48TQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:10
Number of D/A Converters:2
Settling Time:11µs (Typ)
Output Type:Current - Unbuffered
Differential Output:Yes
Data Interface:Parallel
Reference Type:External, Internal
Voltage - Supply, Analog:2.7V ~ 3.3V
Voltage - Supply, Digital:2.7V ~ 3.3V
INL/DNL (LSB):±0.5, ±0.25
Architecture:Oversampling Interpolating DAC
Operating Temperature:-40°C ~ 85°C
Package / Case:48-TQFP Exposed Pad
Supplier Device Package:48-TQFP-EP (7x7)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
51

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX5858AECM+TD MAX5856AECM+TD
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active
Number of Bits 10 8
Number of D/A Converters 2 2
Settling Time 11µs (Typ) 11µs (Typ)
Output Type Current - Unbuffered Current - Unbuffered
Differential Output Yes Yes
Data Interface Parallel Parallel
Reference Type External, Internal External, Internal
Voltage - Supply, Analog 2.7V ~ 3.3V 2.7V ~ 3.3V
Voltage - Supply, Digital 2.7V ~ 3.3V 2.7V ~ 3.3V
INL/DNL (LSB) ±0.5, ±0.25 ±0.15, ±0.07
Architecture Oversampling Interpolating DAC Oversampling Interpolating DAC
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C
Package / Case 48-TQFP Exposed Pad 48-TQFP Exposed Pad
Supplier Device Package 48-TQFP-EP (7x7) 48-TQFP-EP (7x7)
Mounting Type Surface Mount Surface Mount
