Please send RFQ , we will respond immediately.

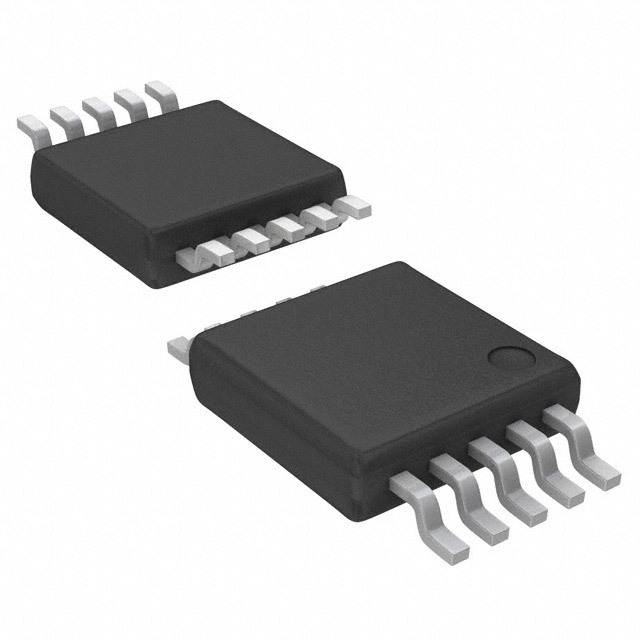

| Part Number | MAX5805BAUB+ | MAX5805BAUB+T | MAX5802BAUB+ | MAX5805AAUB+ | MAX5805BATB+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 2 | 1 | 1 |
| Settling Time | 6.3µs (Typ) | 6.3µs (Typ) | 4.5µs (Typ) | 6.3µs (Typ) | 6.3µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No |
| Data Interface | I²C | I²C | I²C | I²C | I²C |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.2 | ±0.5, ±0.2 | ±0.5, ±0.2 | ±0.5, ±0.2 | ±0.5, ±0.2 |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-uMAX/uSOP | 10-uMAX/uSOP | 10-uMAX/uSOP | 10-uMAX/uSOP | 10-TDFN (3x2) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
