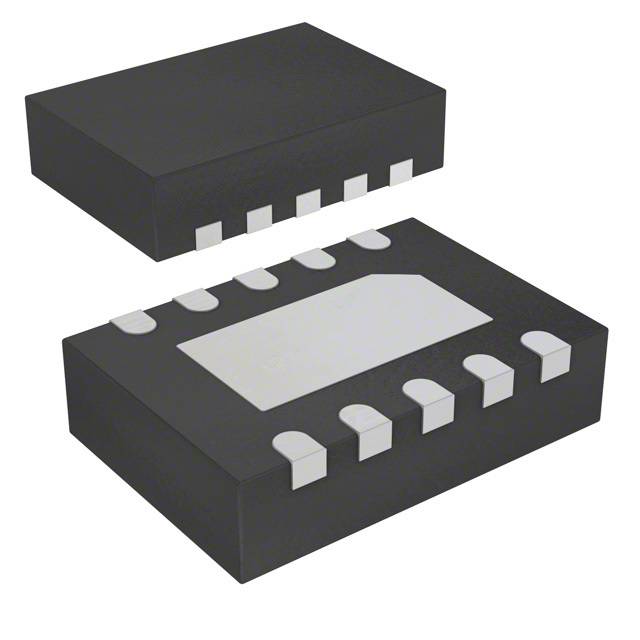

| Part Number | MAX5704ATB+ | MAX5704AUB+ | MAX5704ATB+T | MAX5700ATB+ | MAX5701ATB+ | MAX5703ATB+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 10 | 10 | 10 | 8 | 10 | - |
| Number of D/A Converters | 1 | 1 | 1 | 2 | 2 | - |
| Settling Time | 5.2µs (Typ) | 5.2µs (Typ) | 5.2µs (Typ) | 2.2µs (Typ) | 2.6µs (Typ) | - |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - |
| Differential Output | No | No | No | No | No | - |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | - |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | - |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - |
| INL/DNL (LSB) | ±0.2, ±0.1 | ±0.2, ±0.1 | ±0.2, ±0.1 | ±0.05, ±0.05 | ±0.25, ±0.1 | - |
| Architecture | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | - |
| Package / Case | 10-WFDFN Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | - |
| Supplier Device Package | 10-TDFN (3x2) | 10-uMAX/uSOP | 10-TDFN (3x2) | 10-TDFN (3x3) | 10-TDFN (3x3) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
