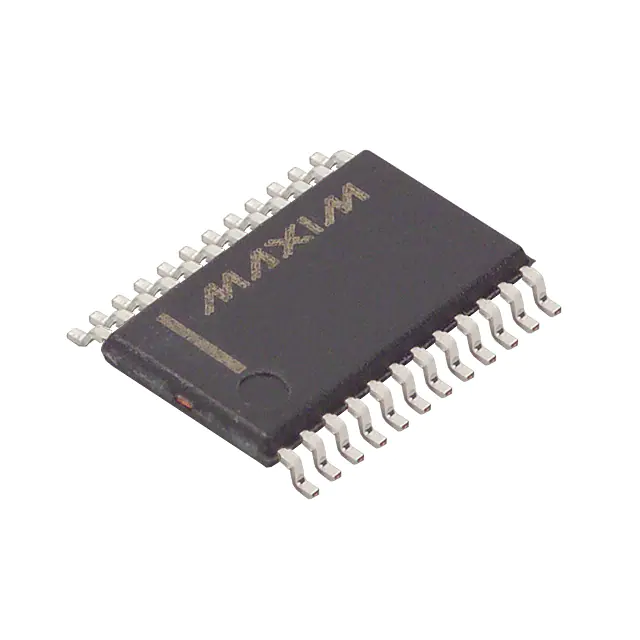

| Part Number | MAX5592EUG+ | MAX5594EUG+ | MAX5592EUG+T | MAX5592EUG |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 10 | 8 | 10 | - |
| Number of D/A Converters | 8 | 8 | 8 | - |
| Settling Time | 6µs | 4µs | 6µs | - |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - |
| Differential Output | No | No | No | - |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | - |
| Reference Type | External | External | External | - |
| Voltage - Supply, Analog | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - |
| Voltage - Supply, Digital | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | - |
| INL/DNL (LSB) | ±0.5, ±1 (Max) | ±0.125, ±1 (Max) | ±0.5, ±1 (Max) | - |
| Architecture | R-2R | R-2R | R-2R | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) | - |
| Supplier Device Package | 24-TSSOP | 24-TSSOP | 24-TSSOP | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |
