Please send RFQ , we will respond immediately.
| Part Number | MAX5521ETC+T | MAX5531ETC+T | MAX5525ETC+T | MAX5524ETC+T | MAX5511ETC+T | MAX5520ETC+T | MAX5521ETC+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Number of Bits | 10 | 12 | 10 | 10 | 8 | 10 | 10 |
| Number of D/A Converters | 1 | 1 | 2 | 2 | 1 | 1 | 1 |
| Settling Time | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No |
| Data Interface | SPI | SPI | SPI | SPI | SPI | SPI | SPI |
| Reference Type | Internal | Internal | Internal | External | Internal | External | Internal |
| Voltage - Supply, Analog | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±0.2 | ±4, ±0.2 | ±1, ±0.2 | ±1, ±0.2 | ±0.25, ±0.2 | ±1, ±0.2 | ±1, ±0.2 |
| Architecture | Current Source | R-2R | Current Source | Current Source | - | Current Source | Current Source |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

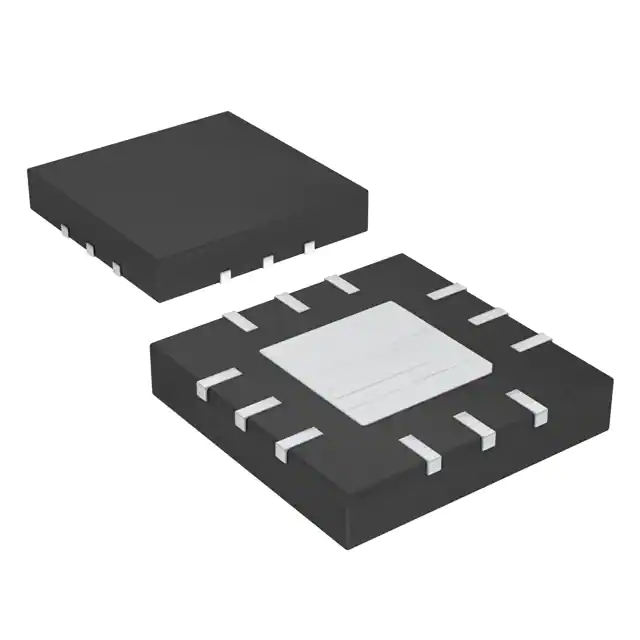

| Package / Case | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
