Please send RFQ , we will respond immediately.
| Part Number | MAX5514ETC+T | MAX5515ETC+T | MAX5524ETC+T | MAX5510ETC+T | MAX5511ETC+T | MAX5514ETC+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete |
| Number of Bits | 8 | 8 | 10 | 8 | 8 | - |
| Number of D/A Converters | 2 | 2 | 2 | 1 | 1 | - |
| Settling Time | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) | 660µs (Typ) | - |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - |
| Differential Output | No | No | No | No | No | - |
| Data Interface | SPI | SPI | SPI | SPI | SPI | - |
| Reference Type | External | Internal | External | External | Internal | - |
| Voltage - Supply, Analog | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | - |
| Voltage - Supply, Digital | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | - |
| INL/DNL (LSB) | ±0.25, ±0.2 | ±0.25, ±0.2 | ±1, ±0.2 | ±0.25, ±0.2 | ±0.25, ±0.2 | - |
| Architecture | Current Source | Current Source | Current Source | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |

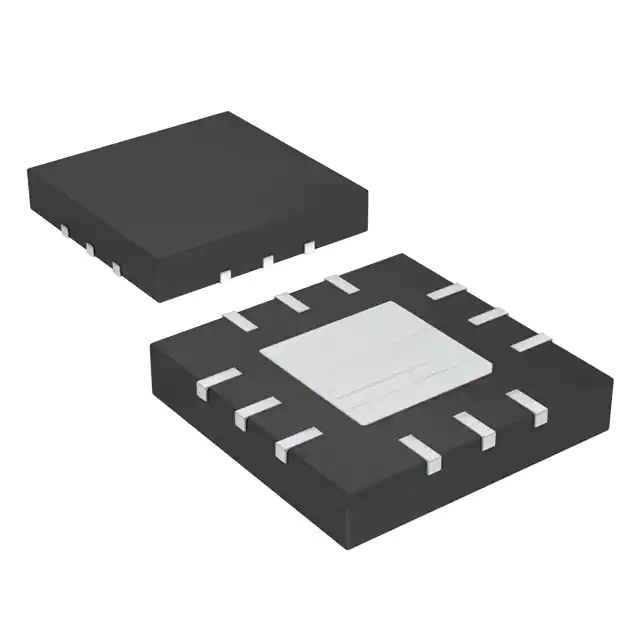

| Package / Case | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | - |
| Supplier Device Package | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
