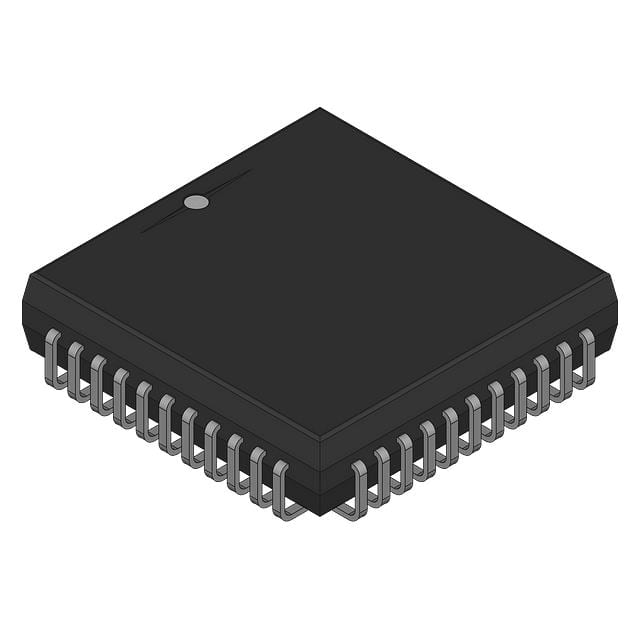

| Part Number | MAX547BCQH | MAX547BEQH | MAX547ACQH | MAX547BCMH |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete |
| Number of Bits | - | - | 13 | 13 |
| Number of D/A Converters | - | - | 8 | 8 |
| Settling Time | - | - | 5µs (Typ) | 5µs (Typ) |
| Output Type | - | - | Voltage - Buffered | Voltage - Buffered |
| Differential Output | - | - | No | No |
| Data Interface | - | - | Parallel | Parallel |
| Reference Type | - | - | External | External |
| Voltage - Supply, Analog | - | - | ±4.75V ~ 5.25V | ±5V |
| Voltage - Supply, Digital | - | - | ±4.75V ~ 5.25V | - |
| INL/DNL (LSB) | - | - | ±0.5, ±1 | ±0.5, ±1 (Max) |
| Architecture | - | - | R-2R | R-2R |
| Operating Temperature | - | - | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | - | - | 44-LCC (J-Lead) | 44-QFP |
| Supplier Device Package | - | - | 44-PLCC (16.59x16.59) | 44-MQFP (10x10) |
| Mounting Type | - | - | Surface Mount | Surface Mount |
