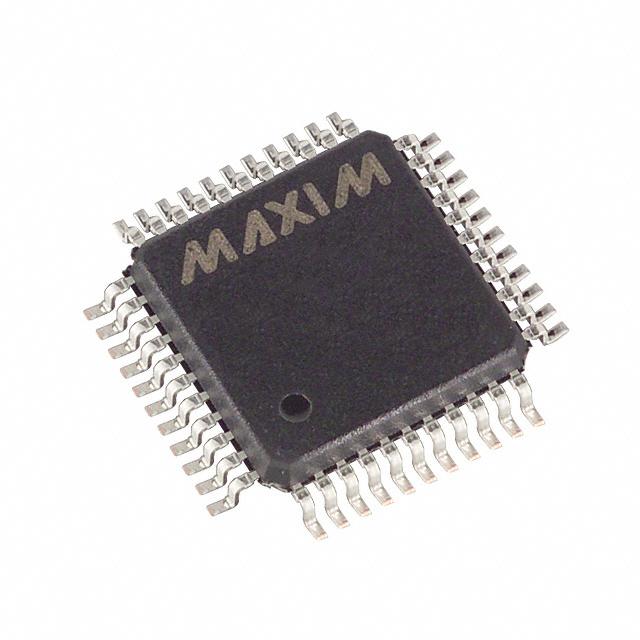

| Part Number | MAX547BCMH+D | MAX547BCQH+D | MAX547BCMH+T | MAX547BCMH+TD | MAX547ACMH+D | MAX547BCMH+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Last Time Buy | Active | Active | Active | Active |
| Number of Bits | 13 | 13 | 13 | 13 | 13 | 13 |
| Number of D/A Converters | 8 | 8 | 8 | 8 | 8 | 8 |
| Settling Time | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External | External | External |
| Voltage - Supply, Analog | ±5V | ±5V | ±5V | ±5V | ±5V | ±5V |
| Voltage - Supply, Digital | - | - | - | - | - | - |
| INL/DNL (LSB) | ±0.5, ±1 (Max) | ±0.5, ±1 (Max) | ±0.5, ±1 (Max) | ±0.5, ±1 (Max) | ±0.5, ±1 (Max) | ±0.5, ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 44-QFP | 44-LCC (J-Lead) | 44-QFP | 44-QFP | 44-QFP | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) | 44-PLCC (16.59x16.59) | 44-MQFP (10x10) | 44-MQFP (10x10) | 44-MQFP (10x10) | 44-MQFP (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
