Please send RFQ , we will respond immediately.

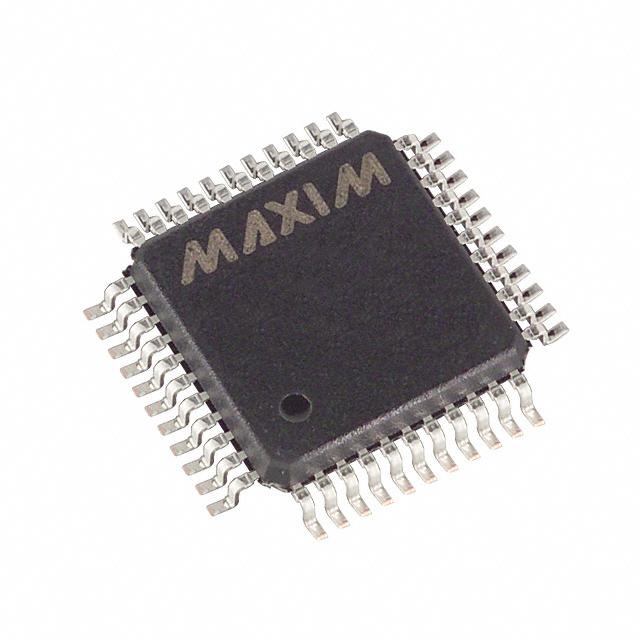

| Part Number | MAX547AEMH | MAX547AEQH | MAX547BEMH | MAX547AEMH+ | MAX547ACMH |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete |
| Number of Bits | 13 | - | 13 | - | 13 |
| Number of D/A Converters | 8 | - | 8 | - | 8 |
| Settling Time | 5µs (Typ) | - | 5µs (Typ) | - | 5µs (Typ) |
| Output Type | Voltage - Buffered | - | Voltage - Buffered | - | Voltage - Buffered |
| Differential Output | No | - | No | - | No |
| Data Interface | Parallel | - | Parallel | - | Parallel |
| Reference Type | External | - | External | - | External |
| Voltage - Supply, Analog | ±5V | - | ±5V | - | ±5V |
| Voltage - Supply, Digital | - | - | - | - | - |
| INL/DNL (LSB) | ±0.5, ±1 (Max) | - | ±0.5, ±1 (Max) | - | ±0.5, ±1 (Max) |
| Architecture | R-2R | - | R-2R | - | R-2R |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C | - | 0°C ~ 70°C |
| Package / Case | 44-QFP | - | 44-QFP | - | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) | - | 44-MQFP (10x10) | - | 44-MQFP (10x10) |
| Mounting Type | Surface Mount | - | Surface Mount | - | Surface Mount |
