MAX535BEUA+
  • Share:

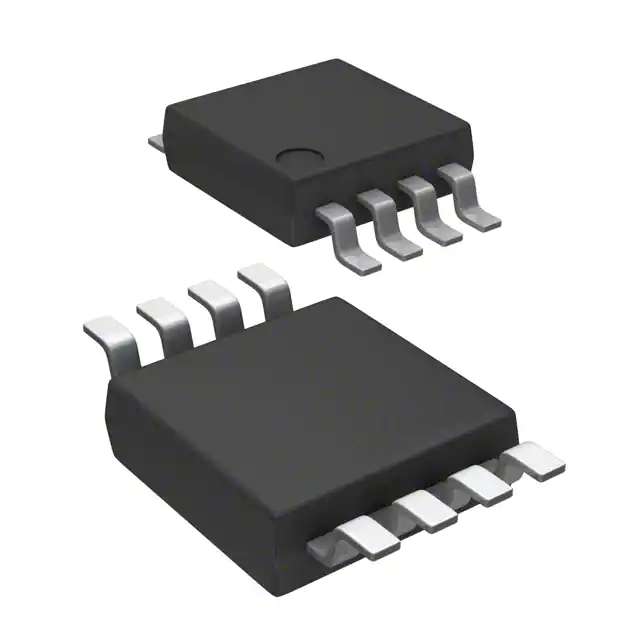

Analog Devices Inc./Maxim Integrated MAX535BEUA+

Manufacturer No:
MAX535BEUA+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
MAX535BEUA+ Datasheet
ECAD Model:
-
Description:
IC DAC 13BIT V-OUT 8UMAX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:13
Number of D/A Converters:1
Settling Time:16µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:SPI
Reference Type:External
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:5V
INL/DNL (LSB):±1 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:8-uMAX/uSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$12.24
4

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX535BEUA+ MAX535BEUA+T   MAX5351BEUA+   MAX5352BEUA+   MAX5353BEUA+   MAX5354EUA+   MAX5355EUA+   MAX535AEUA+   MAX535BCUA+   MAX535BEPA+   MAX535BEUA
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Active Active Active Active Obsolete Active Obsolete Obsolete
Number of Bits 13 13 13 12 12 10 10 13 13 13 13
Number of D/A Converters 1 1 1 1 1 1 1 1 1 1 1
Settling Time 16µs (Typ) 16µs (Typ) 16µs (Typ) 14µs (Typ) 14µs (Typ) 10µs (Typ) 10µs (Typ) 16µs (Typ) 16µs (Typ) 16µs (Typ) 16µs (Typ)
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
Differential Output No No No No No No No No No No No
Data Interface SPI SPI SPI SPI SPI SPI SPI SPI SPI SPI SPI
Reference Type External External External External External External External External External External External
Voltage - Supply, Analog 5V 5V 3.15V ~ 3.6V 5V 3.15V ~ 3.6V 5V 3.15V ~ 3.6V 5V 5V 5V 5V
Voltage - Supply, Digital 5V 5V 3.15V ~ 3.6V 5V 3.15V ~ 3.6V 5V 3.15V ~ 3.6V 5V 5V 5V 5V
INL/DNL (LSB) ±1 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±2 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±2 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±0.5 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±1 (Max), ±1 (Max)
Architecture R-2R R-2R R-2R R-2R R-2R R-2R R-2R R-2R R-2R R-2R R-2R
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-DIP (0.300", 7.62mm) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-PDIP 8-uMAX/uSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Through Hole Surface Mount
