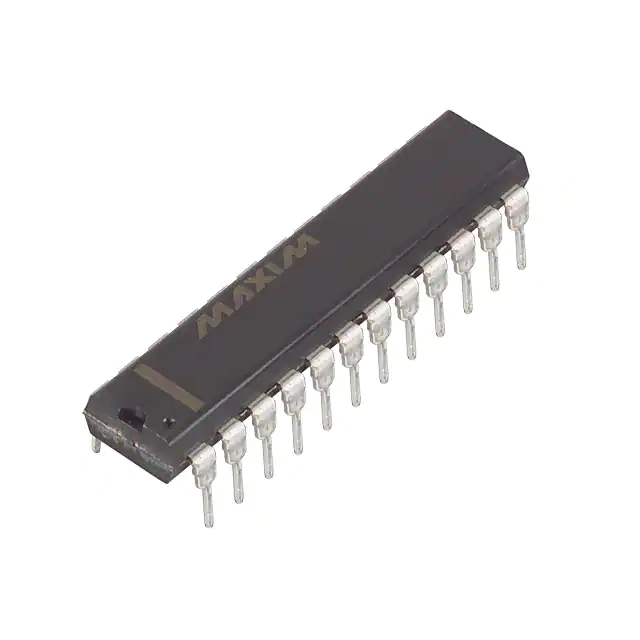

| Part Number | MAX526DENG+ | MAX526DEWG+ | MAX526DCNG+ | MAX526DENG |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Active | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 4 | 4 | 4 | 4 |
| Settling Time | 3µs (Typ) | 3µs (Typ) | 3µs (Typ) | 3µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 10.8V ~ 16.5V, -5V | 10.8V ~ 16.5V, -5V | 10.8V ~ 16.5V, -5V | 10.8V ~ 16.5V, -5V |
| Voltage - Supply, Digital | - | - | - | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 24-SOIC | 24-PDIP | 24-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
