MAX5253AEAP+T
  • Share:

Analog Devices Inc./Maxim Integrated MAX5253AEAP+T

Manufacturer No:
MAX5253AEAP+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
MAX5253AEAP+T Datasheet
ECAD Model:
-
Description:

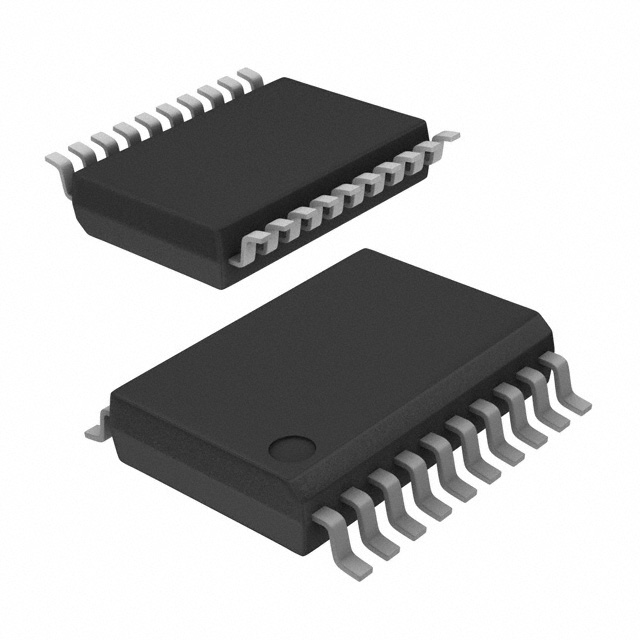

IC DAC 12BIT V-OUT 20SSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:4
Settling Time:16µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:SPI
Reference Type:External
Voltage - Supply, Analog:3V ~ 3.6V
Voltage - Supply, Digital:3V ~ 3.6V
INL/DNL (LSB):±0.25, ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:20-SSOP (0.209", 5.30mm Width)
Supplier Device Package:20-SSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
520

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX5253AEAP+T MAX5253BEAP+T   MAX525AEAP+T   MAX5250AEAP+T   MAX5251AEAP+T   MAX5253ACAP+T   MAX5253AEAP+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Active Active Active Active
Number of Bits 12 12 12 10 10 12 12
Number of D/A Converters 4 4 4 4 4 4 4
Settling Time 16µs (Typ) 16µs (Typ) 12µs (Typ) 10µs (Typ) 12µs (Typ) 16µs (Typ) 16µs (Typ)
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
Differential Output No No No No No No No
Data Interface SPI SPI SPI SPI SPI SPI SPI
Reference Type External External External External External External External
Voltage - Supply, Analog 3V ~ 3.6V 3V ~ 3.6V 5V 5V 3V ~ 3.6V 3V ~ 3.6V 3V ~ 3.6V
Voltage - Supply, Digital 3V ~ 3.6V 3V ~ 3.6V 5V 5V 3V ~ 3.6V 3V ~ 3.6V 3V ~ 3.6V
INL/DNL (LSB) ±0.25, ±1 (Max) ± 1 (Max), 1 (Max) ±0.25, ±1 (Max) ±0.25, ±1 (Max) ±0.25, ±1 (Max) ±0.25, ±1 (Max) ±0.25, ±1 (Max)
Architecture R-2R R-2R R-2R R-2R R-2R R-2R R-2R
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package / Case 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package 20-SSOP 20-SSOP 20-SSOP 20-SSOP 20-SSOP 20-SSOP 20-SSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
