MAX5250BCAP+
  • Share:

Analog Devices Inc./Maxim Integrated MAX5250BCAP+

Manufacturer No:
MAX5250BCAP+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
MAX5250BCAP+ Datasheet
ECAD Model:
-
Description:

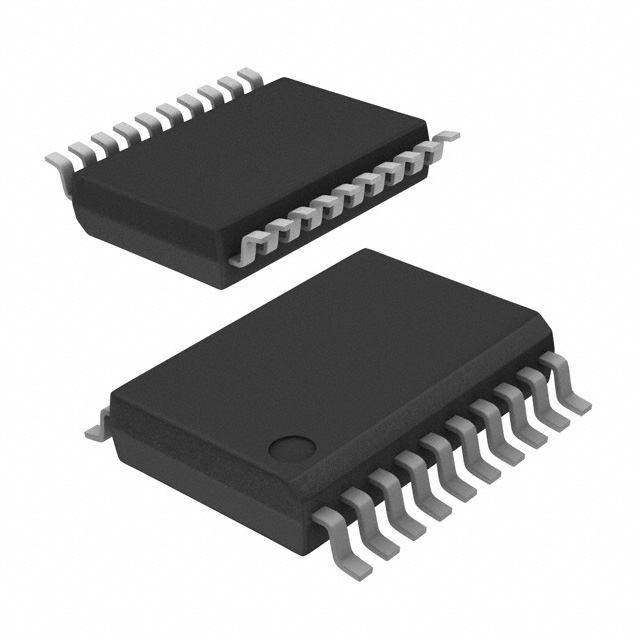

IC DAC 10BIT V-OUT 20SSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:10
Number of D/A Converters:4
Settling Time:10µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:SPI
Reference Type:External
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:5V
INL/DNL (LSB):± 1 (Max), 1 (Max)
Architecture:R-2R
Operating Temperature:0°C ~ 70°C
Package / Case:20-SSOP (0.209", 5.30mm Width)
Supplier Device Package:20-SSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$15.66
12

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX5250BCAP+ MAX5253BCAP+   MAX525BCAP+   MAX5251BCAP+   MAX5250BEAP+   MAX5250BCPP+   MAX5250BCAP+T   MAX5250ACAP+   MAX5250BCAP
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Active Active Active Active Active Obsolete
Number of Bits 10 12 12 10 10 10 10 10 10
Number of D/A Converters 4 4 4 4 4 4 4 4 4
Settling Time 10µs (Typ) 16µs (Typ) 12µs (Typ) 12µs (Typ) 10µs (Typ) 10µs (Typ) 10µs (Typ) 10µs (Typ) 10µs (Typ)
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
Differential Output No No No No No No No No No
Data Interface SPI SPI SPI SPI SPI SPI SPI SPI SPI
Reference Type External External External External External External External External External
Voltage - Supply, Analog 5V 3V ~ 3.6V 5V 3V ~ 3.6V 5V 5V 5V 5V 5V
Voltage - Supply, Digital 5V 3V ~ 3.6V 5V 3V ~ 3.6V 5V 5V 5V 5V 5V
INL/DNL (LSB) ± 1 (Max), 1 (Max) ± 1 (Max), 1 (Max) ± 1 (Max), 1 (Max) ± 1 (Max), 1 (Max) ± 1 (Max), 1 (Max) ± 1 (Max), 1 (Max) ± 1 (Max), 1 (Max) ±0.25, ±1 (Max) ± 1 (Max), 1 (Max)
Architecture R-2R R-2R R-2R R-2R R-2R R-2R R-2R R-2R R-2R
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C -40°C ~ 85°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C
Package / Case 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-DIP (0.300", 7.62mm) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width) 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package 20-SSOP 20-SSOP 20-SSOP 20-SSOP 20-SSOP 20-PDIP 20-SSOP 20-SSOP 20-SSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Through Hole Surface Mount Surface Mount Surface Mount
