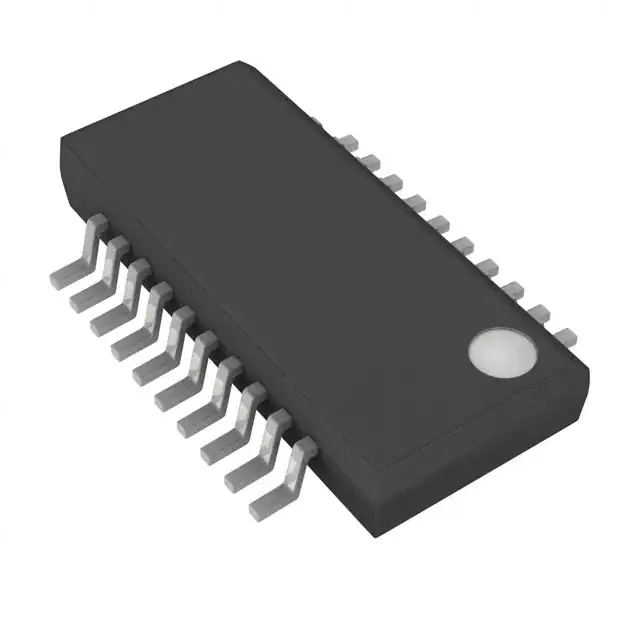

| Part Number | MAX5115EEP+T | MAX5105EEP+T | MAX5115EEP+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete |
| Number of Bits | 8 | 8 | 8 |
| Number of D/A Converters | 4 | 4 | 4 |
| Settling Time | 8µs (Typ) | 6µs (Typ) | 8µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | I²C | SPI | I²C |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V | 2.7V ~ 5.5V | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V | 2.7V ~ 5.5V | 2.7V ~ 5.25V |
| INL/DNL (LSB) | ±2, ±1 | ±2 (Max), ±1 (Max) | ±2, ±1 |
| Architecture | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP | 20-QSOP | 20-QSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
