| Part Number | MAX5113GTJ+T | MAX5110GTJ+T | MAX5111GTJ+T | MAX5112GTJ+T | MAX5113GTJ+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Obsolete | Active | Active |
| Number of Bits | 14 | 14 | 14 | 14 | 14 |
| Number of D/A Converters | 9 | - | 9 | 9 | 9 |
| Settling Time | 15µs (Typ) | - | - | 15µs (Typ) | 15µs (Typ) |
| Output Type | Current - Buffered | - | - | Current - Buffered | Current - Buffered |
| Differential Output | No | - | No | No | No |
| Data Interface | SPI | SPI | I²C | I²C | SPI |
| Reference Type | Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 2.6V ~ 3.3V | 3V | 3V | 2.6V ~ 3.3V, -5V | 2.6V ~ 3.3V, -5V |
| Voltage - Supply, Digital | 2.6V ~ 3.3V | 3V | 3V | 2.6V ~ 3.3V | 2.6V ~ 3.3V |
| INL/DNL (LSB) | ±2, ±0.5 | - | - | ±2, ±0.5 | ±2, ±0.5 |
| Architecture | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |

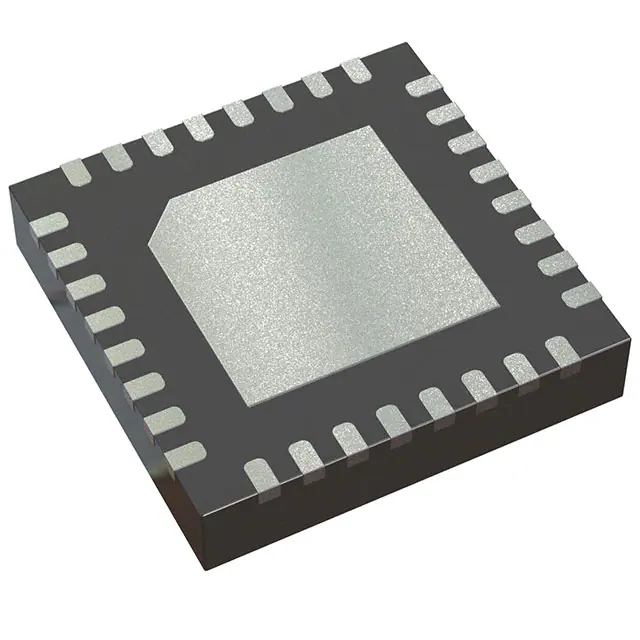

| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
