Please send RFQ , we will respond immediately.
| Part Number | MAX5096AAUP+T | MAX5097AAUP+T | MAX5096BAUP+T | MAX5096AAUP+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | - |
| Output Configuration | Positive | Positive | Positive | - |
| Topology | Buck | Buck | Buck | - |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | - |
| Number of Outputs | 1 | 1 | 1 | - |
| Voltage - Input (Min) | 5V | 5V | 5V | - |
| Voltage - Input (Max) | 40V | 40V | 40V | - |
| Voltage - Output (Min/Fixed) | 1.24V (3.3V) | 1.24V (3.3V) | 1.24V (5V) | - |
| Voltage - Output (Max) | 11V | 11V | 11V | - |
| Current - Output | 600mA | 600mA | 600mA | - |
| Frequency - Switching | 135kHz | 330kHz | 135kHz | - |
| Synchronous Rectifier | No | No | No | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |

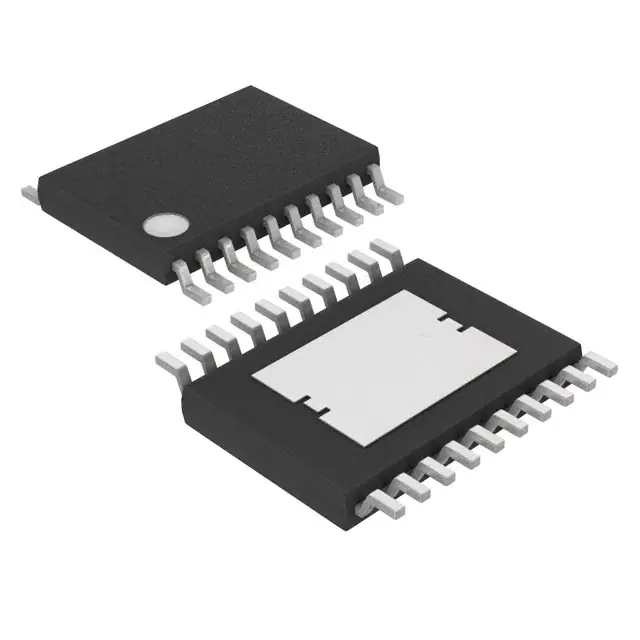

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | - |
| Supplier Device Package | 20-TSSOP-EP | 20-TSSOP-EP | 20-TSSOP-EP | - |
