MAX5094CAUA+
  • Share:

Analog Devices Inc./Maxim Integrated MAX5094CAUA+

Manufacturer No:
MAX5094CAUA+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
MAX5094CAUA+ Datasheet
ECAD Model:
-
Description:

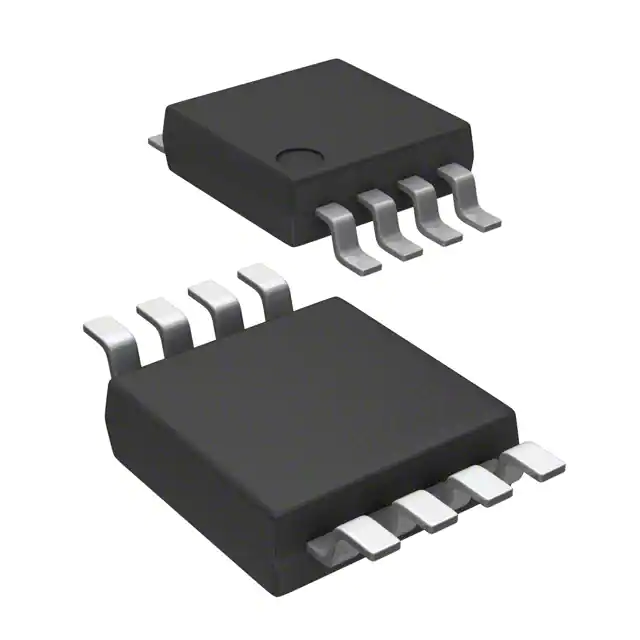

IC REG CTRLR MULT TOPOLOGY 8UMAX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Up/Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Flyback, Forward Converter
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):7.6V ~ 30V
Frequency - Switching:20kHz ~ 1MHz
Duty Cycle (Max):96%
Synchronous Rectifier:No
Clock Sync:No
Serial Interfaces:-
Control Features:Frequency Control
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:8-uMAX/uSOP
0 Remaining View Similar

In Stock

$8.24
60

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX5094CAUA+ MAX5094DAUA+   MAX5094CAUA+T   MAX5095CAUA+   MAX5094AAUA+   MAX5094BAUA+   MAX5094CASA+   MAX5094CAUA
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Obsolete Active Obsolete Obsolete Obsolete
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Up/Step-Down Step-Up/Step-Down Step-Up/Step-Down Step-Up/Step-Down Step-Up/Step-Down Step-Up/Step-Down Step-Up/Step-Down Step-Up/Step-Down
Output Configuration Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable
Topology Flyback, Forward Converter Flyback, Forward Converter Flyback, Forward Converter Flyback, Forward Converter Flyback, Forward Converter Flyback, Forward Converter Flyback, Forward Converter Flyback, Forward Converter
Number of Outputs 1 1 1 1 1 1 1 1
Output Phases 1 1 1 1 1 1 1 1
Voltage - Supply (Vcc/Vdd) 7.6V ~ 30V 7.6V ~ 30V 7.6V ~ 30V 7.6V ~ 30V 7.6V ~ 30V 7.6V ~ 30V 7.6V ~ 30V 7.6V ~ 30V
Frequency - Switching 20kHz ~ 1MHz 10kHz ~ 500kHz 20kHz ~ 1MHz 10kHz ~ 500kHz 20kHz ~ 1MHz 10kHz ~ 500kHz 20kHz ~ 1MHz 20kHz ~ 1MHz
Duty Cycle (Max) 96% 49.8% 96% 49.8% 96% 49.8% 96% 96%
Synchronous Rectifier No No No No No No No No
Clock Sync No No No No No No No No
Serial Interfaces - - - - - - - -
Control Features Frequency Control Frequency Control Frequency Control Frequency Control Frequency Control Frequency Control Frequency Control Frequency Control
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-SOIC (0.154", 3.90mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP 8-SOIC 8-uMAX/uSOP
