MAX508AEPP
  • Share:

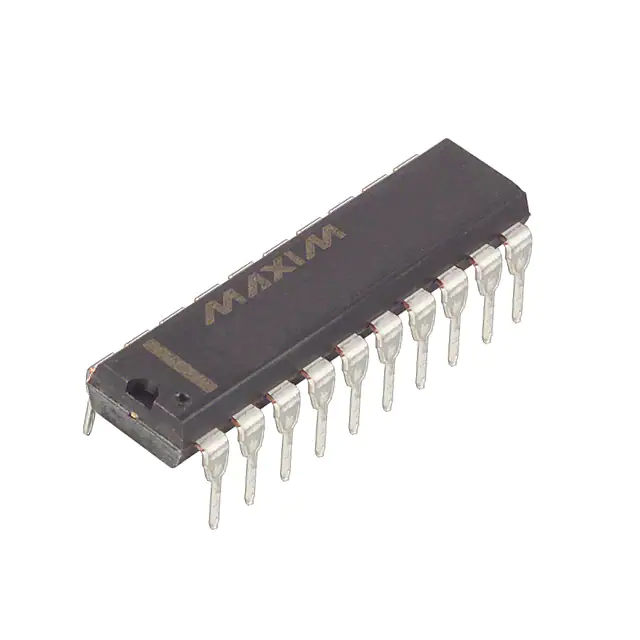

Analog Devices Inc./Maxim Integrated MAX508AEPP

Manufacturer No:
MAX508AEPP
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
MAX508AEPP Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT V-OUT 20DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:1
Settling Time:5µs
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:Parallel
Reference Type:Internal
Voltage - Supply, Analog:±11.4V ~ 15.75V
Voltage - Supply, Digital:11.4V ~ 15.75V
INL/DNL (LSB):±0.75 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:20-PDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

-
139

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX508AEPP MAX508AEWP   MAX508BEPP   MAX509AEPP   MAX508AEPP+   MAX506AEPP   MAX508ACPP
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Number of Bits 12 12 12 8 - 8 12
Number of D/A Converters 1 1 1 4 - 4 1
Settling Time 5µs 5µs 5µs 6µs (Typ) - 6µs (Typ) 5µs
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered - Voltage - Buffered Voltage - Buffered
Differential Output No No No No - No No
Data Interface Parallel Parallel Parallel SPI - Parallel Parallel
Reference Type Internal Internal Internal External - External Internal
Voltage - Supply, Analog ±11.4V ~ 15.75V ±11.4V ~ 15.75V ±11.4V ~ 15.75V ±5V - ±5V ±11.4V ~ 15.75V
Voltage - Supply, Digital 11.4V ~ 15.75V 11.4V ~ 15.75V 11.4V ~ 15.75V 5V - 5V 11.4V ~ 15.75V
INL/DNL (LSB) ±0.75 (Max), ±1 (Max) ±0.75 (Max), ±1 (Max) ±1 (Max), ±1 (Max) -, ±1 (Max) - -, ±1 (Max) ±0.75 (Max), ±1 (Max)
Architecture R-2R R-2R R-2R R-2R - R-2R R-2R
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C - -40°C ~ 85°C 0°C ~ 70°C
Package / Case 20-DIP (0.300", 7.62mm) 20-SOIC (0.295", 7.50mm Width) 20-DIP (0.300", 7.62mm) 20-DIP (0.300", 7.62mm) - 20-DIP (0.300", 7.62mm) 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-PDIP 20-SOIC 20-PDIP 20-PDIP - 20-PDIP 20-PDIP
Mounting Type Through Hole Surface Mount Through Hole Through Hole - Through Hole Through Hole
