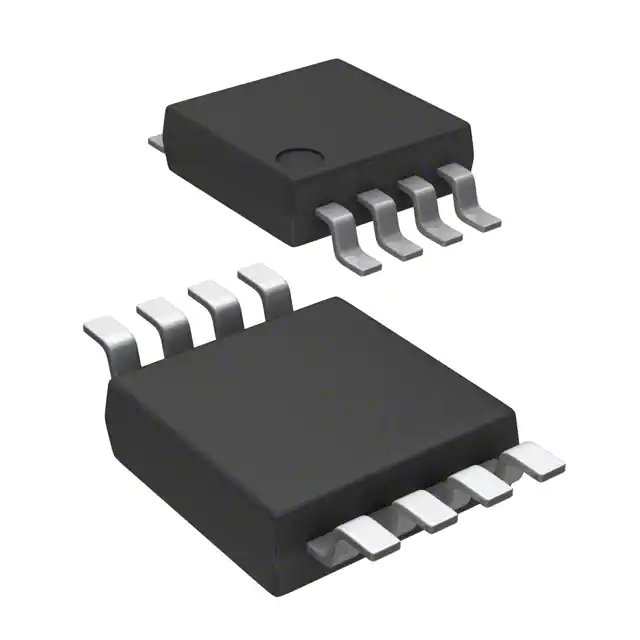

| Part Number | MAX5071AAUA+T | MAX5071BAUA+T | MAX5071CAUA+T | MAX5071AAUA-T | MAX5070AAUA+T | MAX5071AASA+T | MAX5071AAUA+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 30V | 10.8V ~ 30V | 10.8V ~ 30V | 10.8V ~ 30V | 10.8V ~ 30V | 10.8V ~ 30V | 10.8V ~ 30V |
| Frequency - Switching | 20kHz ~ 1MHz | 20kHz ~ 1MHz | 20kHz ~ 1MHz | 20kHz ~ 1MHz | 20kHz ~ 1MHz | 20kHz ~ 1MHz | 20kHz ~ 1MHz |
| Duty Cycle (Max) | 96% | 49.8% | 49.8% | 96% | 96% | 96% | 96% |
| Synchronous Rectifier | No | No | No | No | No | No | No |
| Clock Sync | Yes | Yes | No | Yes | No | Yes | Yes |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | Frequency Control | Frequency Control | Frequency Control | Frequency Control | Frequency Control | Frequency Control | Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-SOIC | 8-uMAX/uSOP |
