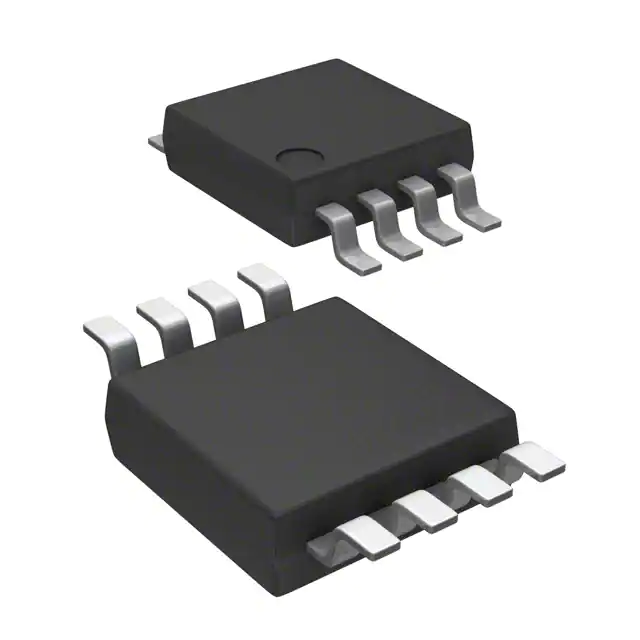

Analog Devices Inc./Maxim Integrated MAX5070AAUA

Manufacturer No:
MAX5070AAUA
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
MAX5070AAUA Datasheet
ECAD Model:
-
Description:
IC REG CTRLR FLYBACK 8UMAX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Up/Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Flyback
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):10.8V ~ 30V
Frequency - Switching:20kHz ~ 1MHz
Duty Cycle (Max):96%
Synchronous Rectifier:No
Clock Sync:No
Serial Interfaces:-
Control Features:Frequency Control
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:8-uMAX/uSOP
0 Remaining View Similar

In Stock

-
247

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX5070AAUA MAX5070BAUA   MAX5071AAUA   MAX5070AAUA+   MAX5070AASA
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Output Type Transistor Driver Transistor Driver Transistor Driver - Transistor Driver
Function Step-Up/Step-Down Step-Up/Step-Down Step-Up/Step-Down - Step-Up/Step-Down
Output Configuration Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable - Positive, Isolation Capable
Topology Flyback Flyback Flyback - Flyback
Number of Outputs 1 1 1 - 1
Output Phases 1 1 1 - 1
Voltage - Supply (Vcc/Vdd) 10.8V ~ 30V 10.8V ~ 30V 10.8V ~ 30V - 10.8V ~ 30V
Frequency - Switching 20kHz ~ 1MHz 20kHz ~ 1MHz 20kHz ~ 1MHz - 20kHz ~ 1MHz
Duty Cycle (Max) 96% 49.8% 96% - 96%
Synchronous Rectifier No No No - No
Clock Sync No No Yes - No
Serial Interfaces - - - - -
Control Features Frequency Control Frequency Control Frequency Control - Frequency Control
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) - -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount - Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) - 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-uMAX/uSOP 8-uMAX/uSOP 8-uMAX/uSOP - 8-SOIC
