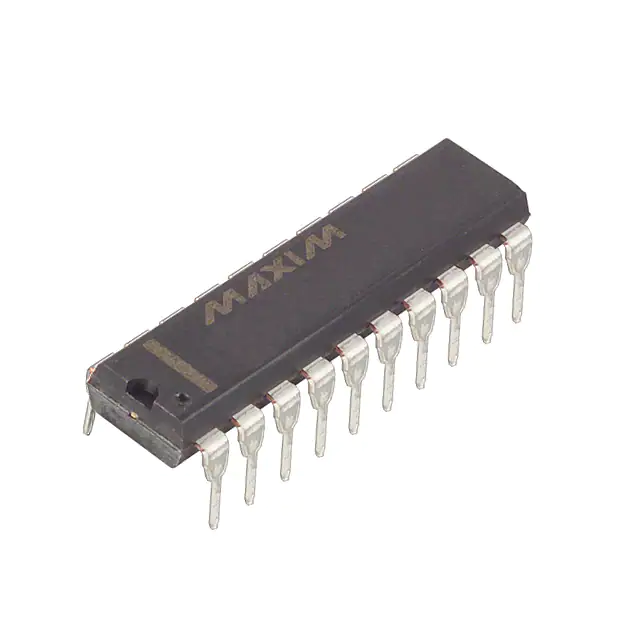

| Part Number | MAX506ACPP+ | MAX506ACWP+ | MAX506BCPP+ | MAX509ACPP+ | MAX506AEPP+ | MAX508ACPP+ | MAX506ACPP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active | Obsolete | Obsolete |
| Number of Bits | 8 | 8 | 8 | 8 | - | - | 8 |
| Number of D/A Converters | 4 | 4 | 4 | 4 | - | - | 4 |
| Settling Time | 6µs (Typ) | 6µs (Typ) | 6µs (Typ) | 6µs (Typ) | - | - | 6µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - | - | Voltage - Buffered |
| Differential Output | No | No | No | No | - | - | No |
| Data Interface | Parallel | Parallel | Parallel | SPI | - | - | Parallel |
| Reference Type | External | External | External | External | - | - | External |
| Voltage - Supply, Analog | ±5V | ±5V | ±5V | ±5V | - | - | ±5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | - | - | 5V |
| INL/DNL (LSB) | -, ±1 (Max) | -, ±1 (Max) | -, ±1 (Max) | -, ±1 (Max) | - | - | -, ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | - | - | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | - | 0°C ~ 70°C |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-SOIC (0.295", 7.50mm Width) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | - | - | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-SOIC | 20-PDIP | 20-PDIP | - | - | 20-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | - | - | Through Hole |
