Please send RFQ , we will respond immediately.
| Part Number | MAX5069DAUE+ | MAX5069DAUE+T | MAX5069AAUE+ | MAX5069BAUE+ | MAX5069CAUE+ | MAX5069DAUE |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Down | Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Forward Converter | Forward Converter | Buck | Buck | Forward Converter | Forward Converter |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 24V | 10.8V ~ 24V | 10.8V ~ 24V | 10.8V ~ 24V | 10.8V ~ 24V | 10.8V ~ 24V |
| Frequency - Switching | 25kHz ~ 1.25MHz | 25kHz ~ 1.25MHz | 50kHz ~ 2.5MHz | 50kHz ~ 2.5MHz | 25kHz ~ 1.25MHz | 25kHz ~ 1.25MHz |
| Duty Cycle (Max) | 100% | 100% | 100% | 100% | 100% | 100% |
| Synchronous Rectifier | No | No | No | No | No | No |
| Clock Sync | Yes | Yes | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - | - | - |
| Control Features | Dead Time Control, Enable, Frequency Control | Dead Time Control, Enable, Frequency Control | Dead Time Control, Enable, Frequency Control | Dead Time Control, Enable, Frequency Control | Dead Time Control, Enable, Frequency Control | Dead Time Control, Enable, Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

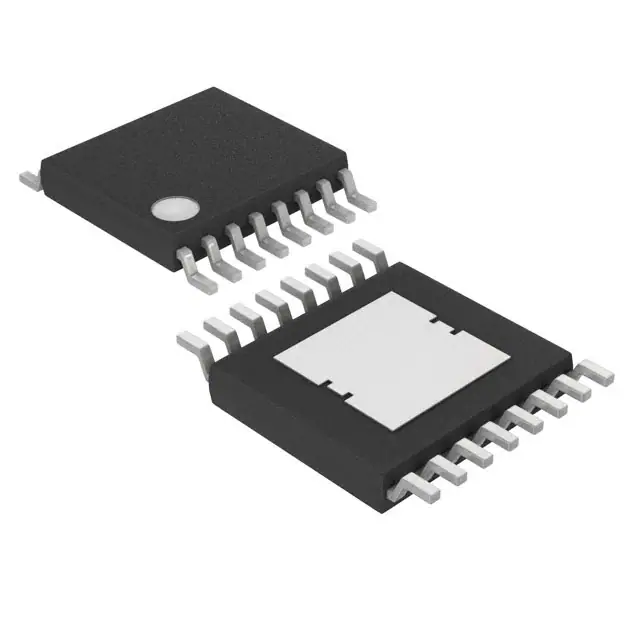

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP |
