| Part Number | MAX5068CAUE+T | MAX5068DAUE+T | MAX5068CAUE-T | MAX5068AAUE+T | MAX5068CAUE+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Not For New Designs | Obsolete | Obsolete | Obsolete | Not For New Designs |
| Output Isolation | Either | Either | Either | Either | Either |
| Internal Switch(s) | No | No | No | No | No |
| Voltage - Breakdown | - | - | - | - | - |
| Topology | Flyback | Flyback | Flyback | Flyback, Forward | Flyback |
| Voltage - Start Up | 23.6 V | 23.6 V | 23.6 V | 23.6 V | 23.6 V |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 24V | 10.8V ~ 24V | 10.8V ~ 24V | 10.8V ~ 24V | 10.8V ~ 24V |
| Duty Cycle | 75% | 75% | 75% | 50% | 75% |
| Frequency - Switching | 12.5kHz ~ 625kHz | 12.5kHz ~ 625kHz | 12.5kHz ~ 625kHz | 25kHz ~ 1.25MHz | 12.5kHz ~ 625kHz |
| Power (Watts) | - | - | - | - | - |
| Fault Protection | Current Limiting, Over Temperature | Current Limiting, Over Temperature | Current Limiting, Over Temperature | Current Limiting, Over Temperature | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Sync | EN, Frequency Control, Sync | EN, Frequency Control, Sync | EN, Frequency Control, Sync | EN, Frequency Control, Sync |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |

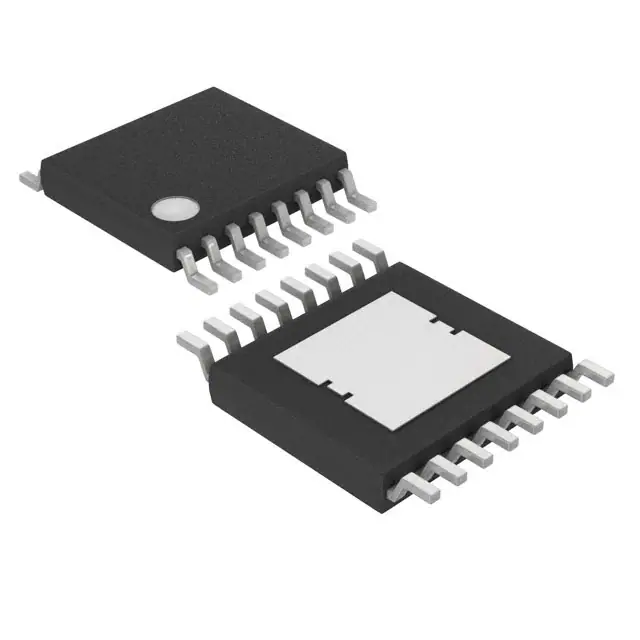

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
