Please send RFQ , we will respond immediately.
| Part Number | MAX5064BATC+ | MAX5064BATC+T | MAX5064AATC+ | MAX5064BATC |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 12.6V | 8V ~ 12.6V | 8V ~ 12.6V | 8V ~ 12.6V |
| Logic Voltage - VIL, VIH | 0.8V, 2V | 0.8V, 2V | - | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 125 V | 125 V | 125 V | 125 V |
| Rise / Fall Time (Typ) | 65ns, 65ns | 65ns, 65ns | 65ns, 65ns | 65ns, 65ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

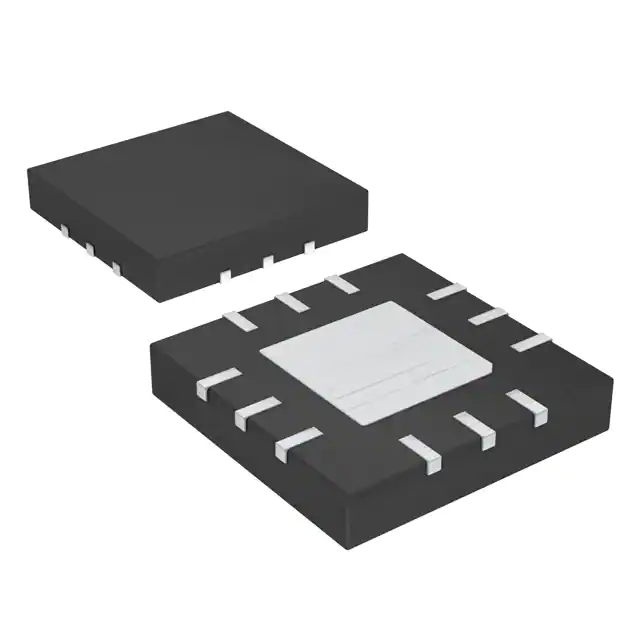

| Package / Case | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) |
