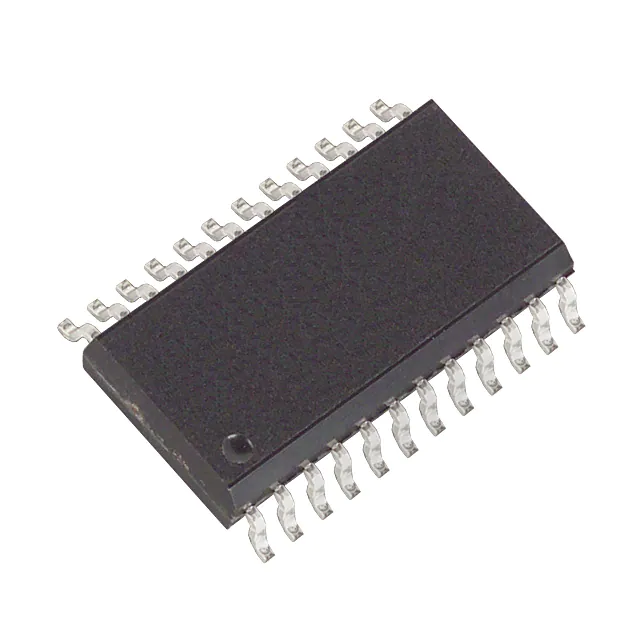

Analog Devices Inc./Maxim Integrated MAX505BCWG+T

Manufacturer No:
MAX505BCWG+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
MAX505BCWG+T Datasheet
ECAD Model:
-
Description:
IC DAC 8BIT V-OUT 24SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:8
Number of D/A Converters:4
Settling Time:6µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:±5V
Voltage - Supply, Digital:5V
INL/DNL (LSB):-, ±1 (Max)
Architecture:R-2R
Operating Temperature:0°C ~ 70°C
Package / Case:24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:24-SOIC
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$11.53
73

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX505BCWG+T MAX505BEWG+T   MAX507BCWG+T   MAX501BCWG+T   MAX502BCWG+T   MAX505ACWG+T   MAX505BCAG+T   MAX505BCWG+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Active Active Active Active Active
Number of Bits 8 8 12 12 12 8 8 8
Number of D/A Converters 4 4 1 1 1 4 4 4
Settling Time 6µs (Typ) 6µs (Typ) 5µs 5µs 5µs 6µs (Typ) 6µs (Typ) 6µs (Typ)
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
Differential Output No No No No No No No No
Data Interface Parallel Parallel Parallel Parallel Parallel Parallel Parallel Parallel
Reference Type External External Internal External External External External External
Voltage - Supply, Analog ±5V ±5V ±11.4V ~ 15.75V ±11.4V ~ 15.75V ±11.4V ~ 15.75V ±5V ±5V ±5V
Voltage - Supply, Digital 5V 5V 11.4V ~ 15.75V - - 5V 5V 5V
INL/DNL (LSB) -, ±1 (Max) -, ±1 (Max) ±1 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±1 (Max), ±1 (Max) -, ±1 (Max) -, ±1 (Max) -, ±1 (Max)
Architecture R-2R R-2R R-2R R-2R R-2R R-2R R-2R R-2R
Operating Temperature 0°C ~ 70°C -40°C ~ 85°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C
Package / Case 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SSOP (0.209", 5.30mm Width) 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC 24-SOIC 24-SOIC 24-SOIC 24-SOIC 24-SOIC 24-SSOP 24-SOIC
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
