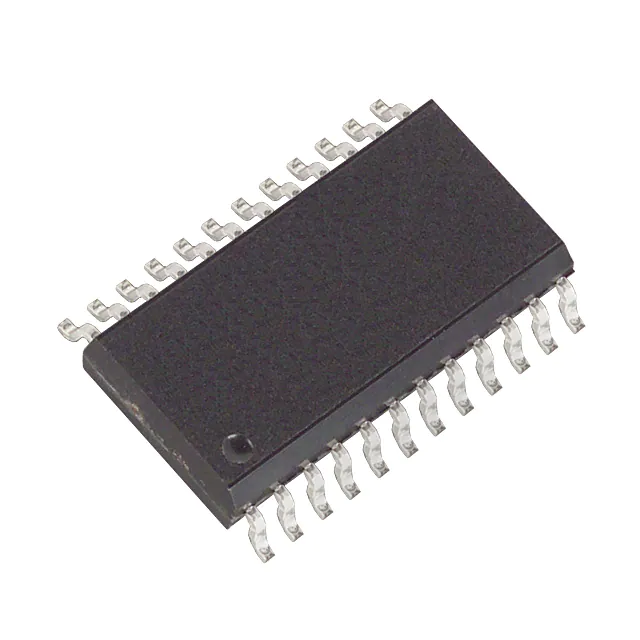

| Part Number | MAX505ACWG+T | MAX505BCWG+T | MAX507ACWG+T | MAX505AEWG+T | MAX501ACWG+T | MAX502ACWG+T | MAX505ACAG+T | MAX505ACWG+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Number of Bits | 8 | 8 | 12 | 8 | 12 | 12 | 8 | 8 |
| Number of D/A Converters | 4 | 4 | 1 | 4 | 1 | 1 | 4 | 4 |
| Settling Time | 6µs (Typ) | 6µs (Typ) | 5µs | 6µs (Typ) | 5µs | 5µs | 6µs (Typ) | 6µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | Internal | External | External | External | External | External |
| Voltage - Supply, Analog | ±5V | ±5V | ±11.4V ~ 15.75V | ±5V | ±11.4V ~ 15.75V | ±11.4V ~ 15.75V | ±5V | ±5V |
| Voltage - Supply, Digital | 5V | 5V | 11.4V ~ 15.75V | 5V | - | - | 5V | 5V |
| INL/DNL (LSB) | -, ±1 (Max) | -, ±1 (Max) | ±0.75 (Max), ±1 (Max) | -, ±1 (Max) | ±0.75 (Max), ±1 (Max) | ±0.75 (Max), ±1 (Max) | -, ±1 (Max) | -, ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SSOP (0.209", 5.30mm Width) | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC | 24-SOIC | 24-SOIC | 24-SOIC | 24-SOIC | 24-SOIC | 24-SSOP | 24-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
