Please send RFQ , we will respond immediately.
| Part Number | MAX5057AASA+T | MAX5057BASA+T | MAX5057AASA-T | MAX5055AASA+T | MAX5056AASA+T | MAX5057AASA+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs | Obsolete |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 15V | 4V ~ 15V | 4V ~ 15V | 4V ~ 15V | 4V ~ 15V | 4V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2.1V | 0.8V, 2.1V | 0.8V, 2.1V | 0.8V, 2.1V | 0.8V, 2.1V | 0.8V, 2.1V |
| Current - Peak Output (Source, Sink) | 4A, 4A | 4A, 4A | 4A, 4A | 4A, 4A | 4A, 4A | 4A, 4A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting | Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 32ns, 26ns | 32ns, 26ns | 32ns, 26ns | 32ns, 26ns | 32ns, 26ns | 32ns, 26ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

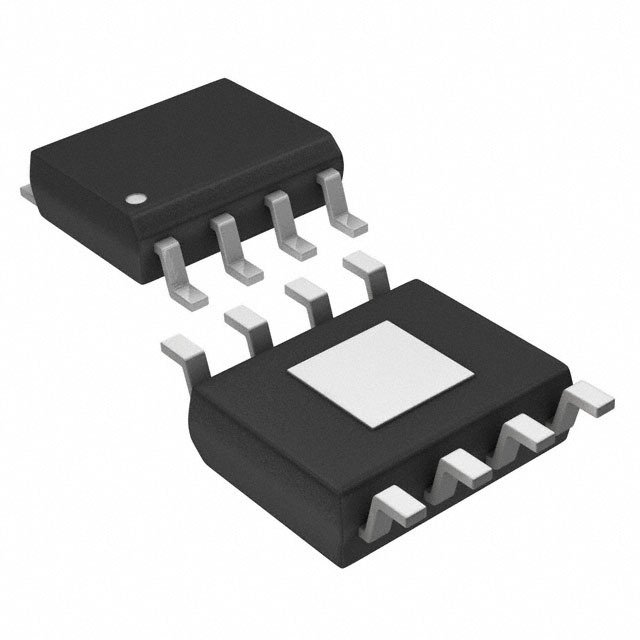

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP | 8-SOIC | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC-EP |
