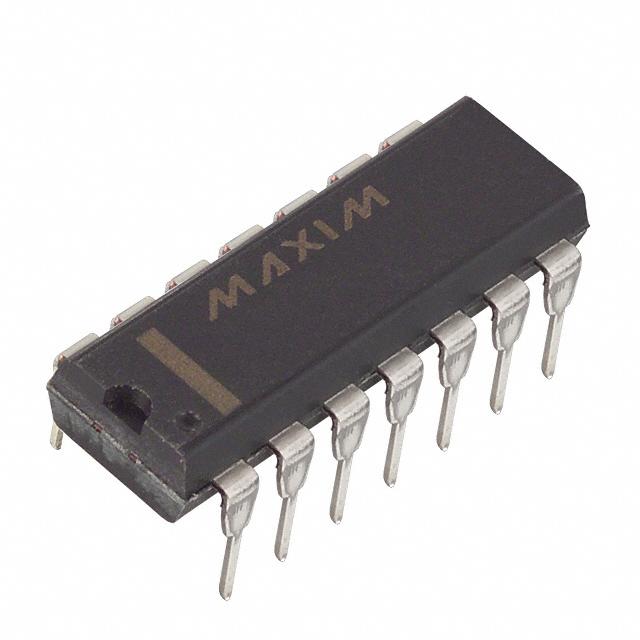

| Part Number | MAX504CPD+ | MAX504CSD+ | MAX504EPD+ | MAX504CPD |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Last Time Buy | Active | Last Time Buy | Obsolete |
| Number of Bits | 10 | 10 | 10 | 10 |
| Number of D/A Converters | 1 | 1 | 1 | 1 |
| Settling Time | 25µs (Typ) | 25µs (Typ) | 25µs (Typ) | 25µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | SPI | SPI | SPI | SPI |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±5V | ±5V | ±5V | ±5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP | 14-SOIC | 14-PDIP | 14-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
