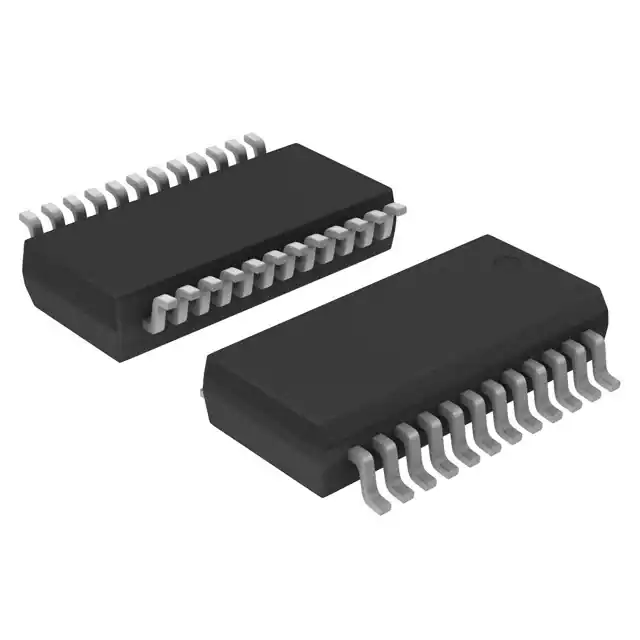

| Part Number | MAX503EAG | MAX503ENG | MAX503EWG | MAX503EAG+ | MAX503CAG |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Number of Bits | 10 | 10 | 10 | 10 | 10 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 25µs (Typ) | 25µs (Typ) | 25µs (Typ) | 25µs (Typ) | 25µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±5V | ±5V | ±5V | ±5V | ±5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-SSOP (0.209", 5.30mm Width) | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SSOP | 24-PDIP | 24-SOIC | 24-SSOP | 24-SSOP |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount |
