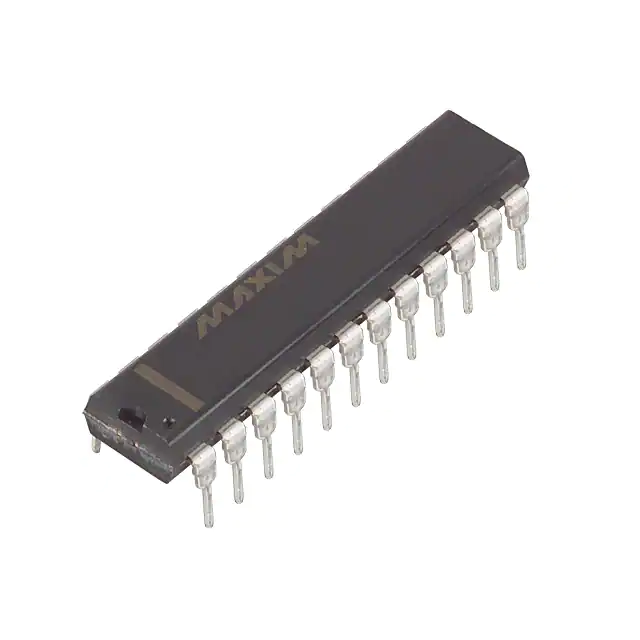

| Part Number | MAX502AENG+ | MAX502AEWG+ | MAX505AENG+ | MAX502ACNG+ | MAX502AENG |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Obsolete | Active | Obsolete |
| Number of Bits | 12 | 12 | - | 12 | 12 |
| Number of D/A Converters | 1 | 1 | - | 1 | 1 |
| Settling Time | 5µs | 5µs | - | 5µs | 5µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | - | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | - | No | No |
| Data Interface | Parallel | Parallel | - | Parallel | Parallel |
| Reference Type | External | External | - | External | External |
| Voltage - Supply, Analog | ±11.4V ~ 15.75V | ±11.4V ~ 15.75V | - | ±11.4V ~ 15.75V | ±11.4V ~ 15.75V |
| Voltage - Supply, Digital | - | - | - | - | - |
| INL/DNL (LSB) | ±0.75 (Max), ±1 (Max) | ±0.75 (Max), ±1 (Max) | - | ±0.75 (Max), ±1 (Max) | ±0.75 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | - | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | 0°C ~ 70°C | -40°C ~ 85°C |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | - | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 24-SOIC | - | 24-PDIP | 24-PDIP |
| Mounting Type | Through Hole | Surface Mount | - | Through Hole | Through Hole |
