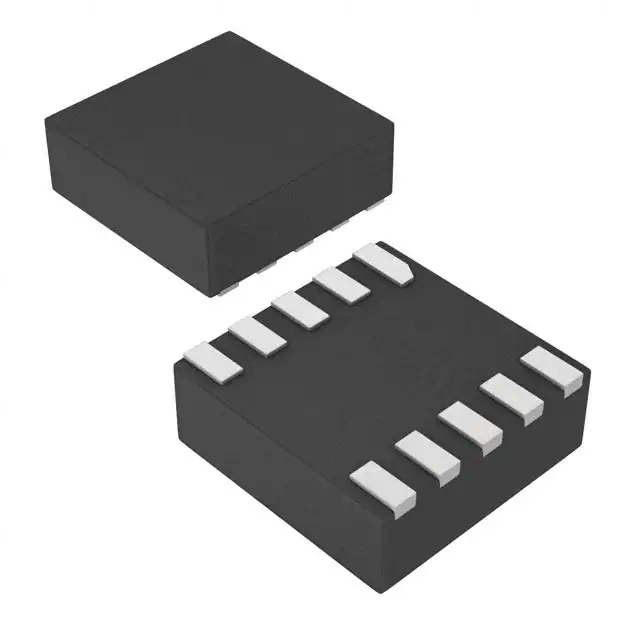

| Part Number | MAX4992ELB+T | MAX4993ELB+T | MAX4992EVB+T |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Active |
| Switch Circuit | SPDT | DPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:2 | 2:1 |
| Number of Circuits | 2 | 1 | 2 |
| On-State Resistance (Max) | 500mOhm | 500mOhm | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 3mOhm | 3mOhm | 3mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 150µs, 2µs | 630ns, 2µs | 150µs, 2µs |
| -3db Bandwidth | - | - | - |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 45pF | 45pF | 45pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA | 100nA |
| Crosstalk | -110dB @ 20kHz | -110dB @ 20kHz | -110dB @ 20kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN | 10-WFDFN | 10-UFQFN |
| Supplier Device Package | 10-uDFN (2x2) | 10-uDFN (2x2) | 10-UTQFN (1.4x1.8) |
