| Part Number | MAX4968CEXB+ | MAX4968CEXB+T | MAX4968BEXB+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 16 | 16 | 16 |
| On-State Resistance (Max) | 34Ohm | 34Ohm | 34Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.02Ohm | 1.02Ohm | 1.02Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 12.5V | 10V ~ 12.5V | 10V ~ 12.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 5µs, 3.5µs | 5µs, 3.5µs | 5µs, 3.5µs |
| -3db Bandwidth | 30MHz | 30MHz | 30MHz |
| Charge Injection | 150pC | 150pC | 150pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF | 8pF | 8pF |
| Current - Leakage (IS(off)) (Max) | - | - | - |
| Crosstalk | -69dB @ 5MHz | -69dB @ 5MHz | -69dB @ 5MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

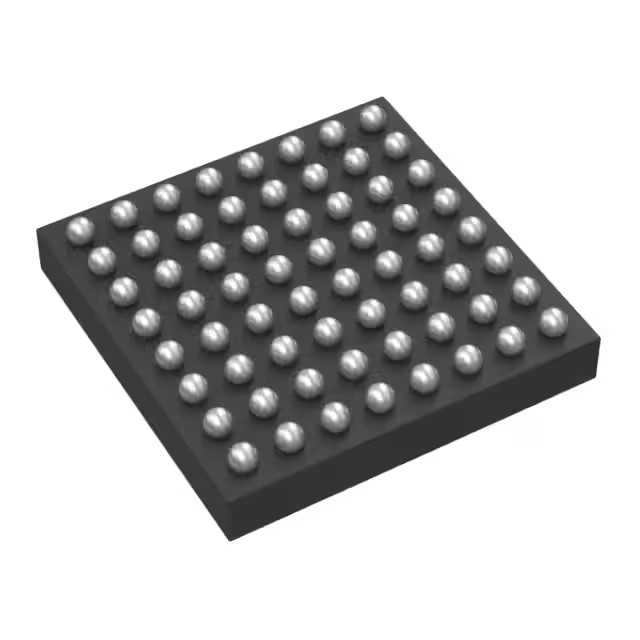

| Package / Case | 64-LFBGA | 64-LFBGA | 64-LFBGA |
| Supplier Device Package | 64-CTBGA (7x7) | 64-CTBGA (7x7) | 64-CTBGA (7x7) |
