| Part Number | MAX4824ETP+T | MAX4825ETP+T | MAX4820ETP+T | MAX4821ETP+T | MAX4822ETP+T | MAX4823ETP+T | MAX4824ETP+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Obsolete |
| Switch Type | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver |
| Number of Outputs | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Ratio - Input:Output | 1:8 | 1:8 | 1:8 | 1:8 | 1:8 | 1:8 | 1:8 |
| Output Configuration | Low Side | Low Side | Low Side | Low Side | Low Side | Low Side | Low Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | Parallel | Parallel | SPI | Parallel | SPI | SPI | Parallel |
| Voltage - Load | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | - | - | Not Required | Not Required | Not Required |
| Current - Output (Max) | 70mA | 70mA | 70mA | 70mA | 70mA | 70mA | 70mA |
| Rds On (Typ) | 2.7Ohm | 2.7Ohm | 2Ohm | 2Ohm | 2.7Ohm | 2.7Ohm | 2.7Ohm |
| Input Type | Non-Inverting | Non-Inverting | - | - | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | - | - | - | - | - | - | - |
| Fault Protection | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

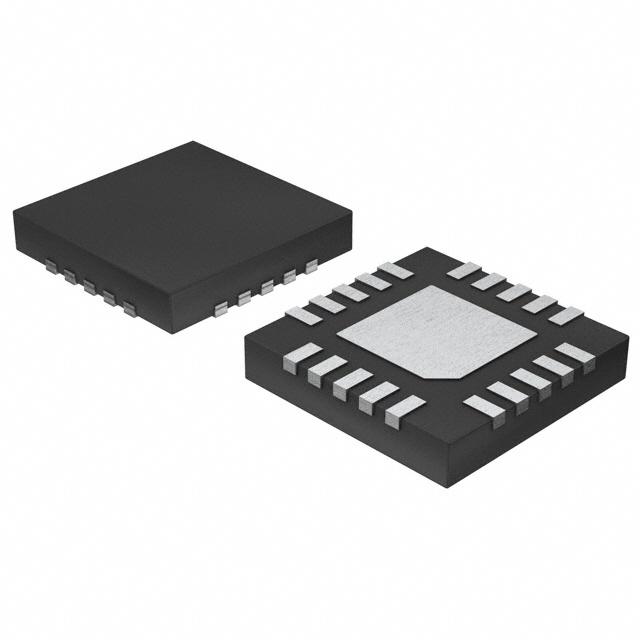

| Supplier Device Package | 20-TQFN (4x4) | 20-TQFN (4x4) | 20-TQFN (4x4) | 20-TQFN (4x4) | 20-TQFN (4x4) | 20-TQFN (4x4) | 20-TQFN (4x4) |
| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
