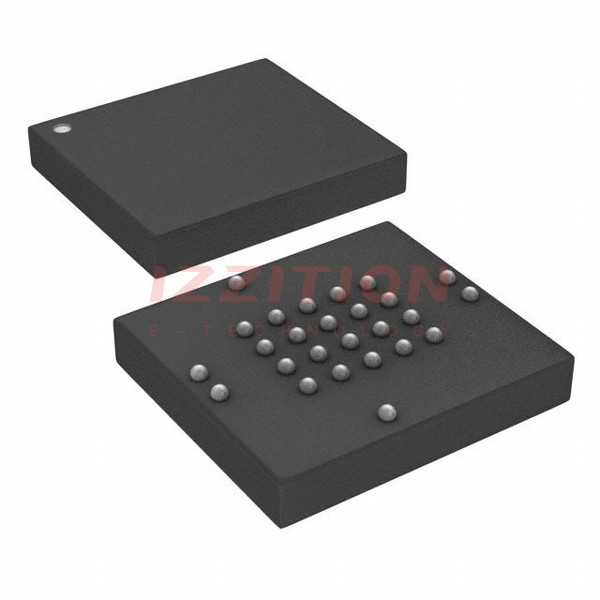

| Part Number | MAX4800CXZ+ | MAX4802CXZ+ | MAX4800CXZ+T | MAX4800CXZ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 8 | 8 | 8 | 8 |
| On-State Resistance (Max) | 38Ohm | 38Ohm | 38Ohm | 38Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.9Ohm | 1.9Ohm | 1.9Ohm | 1.9Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 13.2V | 2.7V ~ 13.2V | 2.7V ~ 13.2V | 2.7V ~ 13.2V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 5µs, 5µs | 5µs, 5µs | 5µs, 5µs | 5µs, 5µs |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 820pC | 820pC | 820pC | 820pC |
| Channel Capacitance (CS(off), CD(off)) | 18pF | 18pF | 18pF | 18pF |
| Current - Leakage (IS(off)) (Max) | 4µA | 4µA | 4µA | 4µA |
| Crosstalk | -80dB @ 5MHz | -80dB @ 5MHz | -80dB @ 5MHz | -80dB @ 5MHz |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 26-LFBGA, CSBGA | 26-LFBGA, CSBGA | 26-LFBGA, CSBGA | 26-LFBGA, CSBGA |
| Supplier Device Package | 72-CSBGA (6x5.35) | 72-CSBGA (6x5.35) | 72-CSBGA (6x5.35) | 72-CSBGA (6x5.35) |
