| Part Number | MAX4784ETE+ | MAX4784EUE+ | MAX4784ETE+T | MAX4754ETE+ | MAX4780ETE+ | MAX4781ETE+ | MAX4782ETE+ | MAX4783ETE+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT | SPDT | - | SP4T | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 | 2:1 | 8:1 | 4:1 | 2:1 |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 1 | 2 | 3 |
| On-State Resistance (Max) | 1Ohm | 1Ohm | 1Ohm | 850mOhm | 1Ohm | 1Ohm | 1Ohm | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm | 100mOhm | 100mOhm | 100mOhm | 100mOhm | 300mOhm | 300mOhm | 300mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 4.2V | 1.6V ~ 4.2V | 1.6V ~ 4.2V | 1.8V ~ 5.5V | 1.6V ~ 4.2V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 10ns | 25ns, 10ns | 25ns, 10ns | 140ns, 50ns | 25ns, 10ns | 25ns, 15ns | 25ns, 15ns | 25ns, 15ns |
| -3db Bandwidth | 123MHz | 123MHz | 123MHz | 10MHz | 123MHz | - | - | - |
| Charge Injection | 5pC | 5pC | 5pC | 300pC | 5pC | -110pC | -110pC | -110pC |
| Channel Capacitance (CS(off), CD(off)) | 33pF, 60pF | 33pF, 60pF | 33pF, 60pF | 180pF, 300pF | 33pF, 60pF | 38pF, 310pF | 38pF, 158pF | 38pF, 75pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA | 4nA | 1nA | 2nA | 2nA | 2nA |
| Crosstalk | -95dB @ 1MHz | -95dB @ 1MHz | -95dB @ 1MHz | -90dB @ 100kHz | -95dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

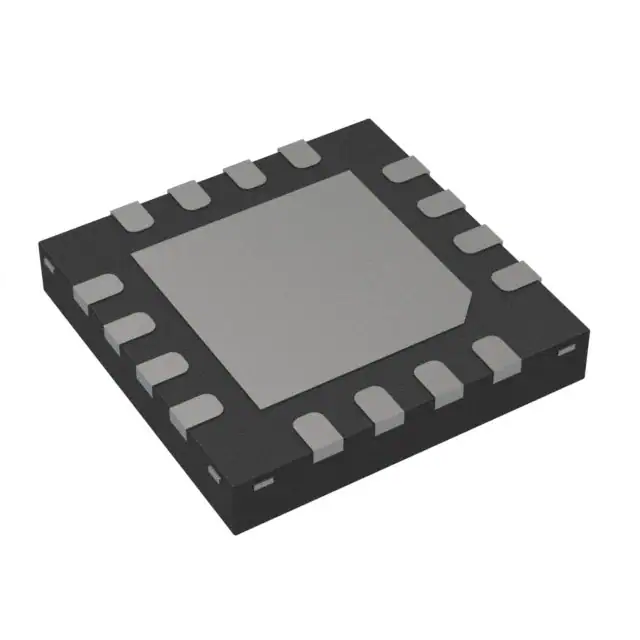

| Package / Case | 16-WFQFN Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) | 16-WFQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) | 16-TSSOP | 16-TQFN (3x3) | 16-TQFN (4x4) | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) |
