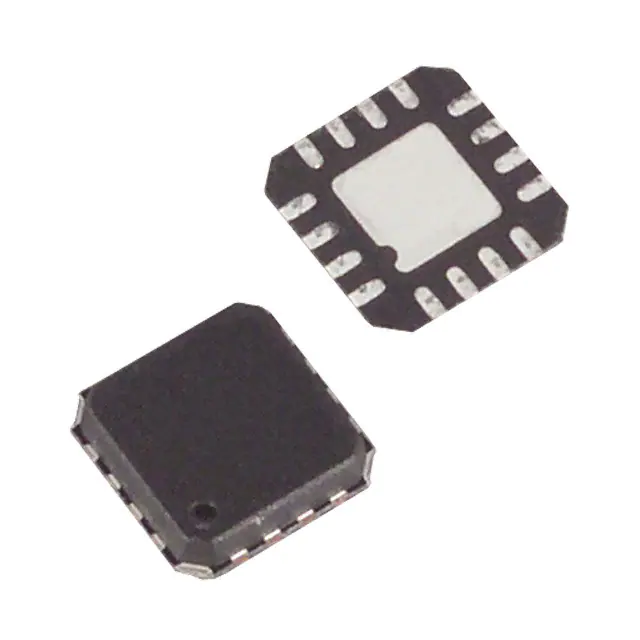

| Part Number | MAX4782EGE+ | MAX4782ETE+ | MAX4782EUE+ | MAX4782EGE+T | MAX4752EGE+ | MAX4781EGE+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Active |
| Switch Circuit | SP4T | SP4T | SP4T | SP4T | SPST - NO | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 4:1 | 4:1 | 1:1 | 8:1 |
| Number of Circuits | 2 | 2 | 2 | 2 | 4 | 1 |
| On-State Resistance (Max) | 1Ohm | 1Ohm | 1Ohm | 1Ohm | 900mOhm | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm | 300mOhm | 300mOhm | 300mOhm | 30mOhm | 300mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 15ns | 25ns, 15ns | 25ns, 15ns | 25ns, 15ns | 30ns, 25ns | 25ns, 15ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | -110pC | -110pC | -110pC | -110pC | 21pC | -110pC |
| Channel Capacitance (CS(off), CD(off)) | 38pF, 158pF | 38pF, 158pF | 38pF, 158pF | 38pF, 158pF | 31pF, 30pF | 38pF, 310pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 2nA | 2nA | 2nA | 2.5nA | 2nA |
| Crosstalk | -80dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) | 16-VQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) | 16-TQFN (3x3) | 16-TSSOP | 16-QFN (4x4) | 16-QFN (3x3) | 16-QFN (4x4) |
