| Part Number | MAX4760EBX+TW | MAX4760EBX+T |
|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | DPDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:2 |
| Number of Circuits | 4 | 4 |
| On-State Resistance (Max) | 3.5Ohm | 3.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm | 200mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 140ns, 50ns | 140ns, 50ns |
| -3db Bandwidth | 150MHz | 150MHz |
| Charge Injection | 15pC | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 25pF | 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA | 5nA |
| Crosstalk | -95dB @ 100kHz | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

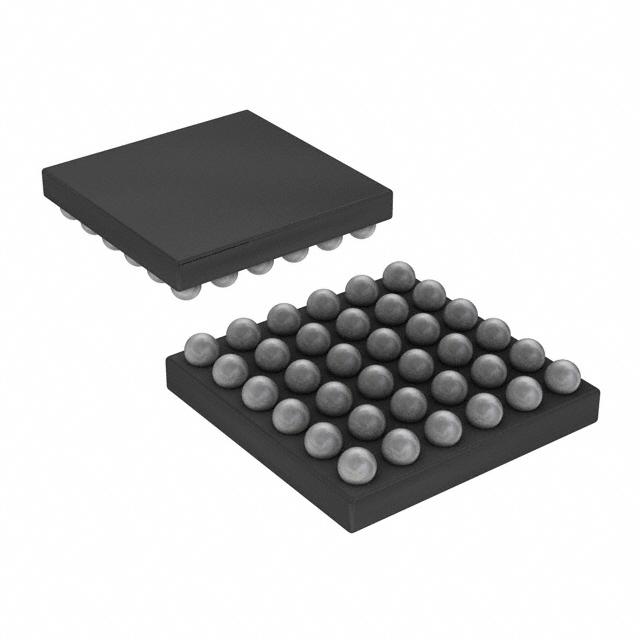

| Package / Case | 36-WFBGA, CSPBGA | 36-WFBGA, CSPBGA |
| Supplier Device Package | 36-UCSP (3x3) | 36-UCSP (3x3) |
