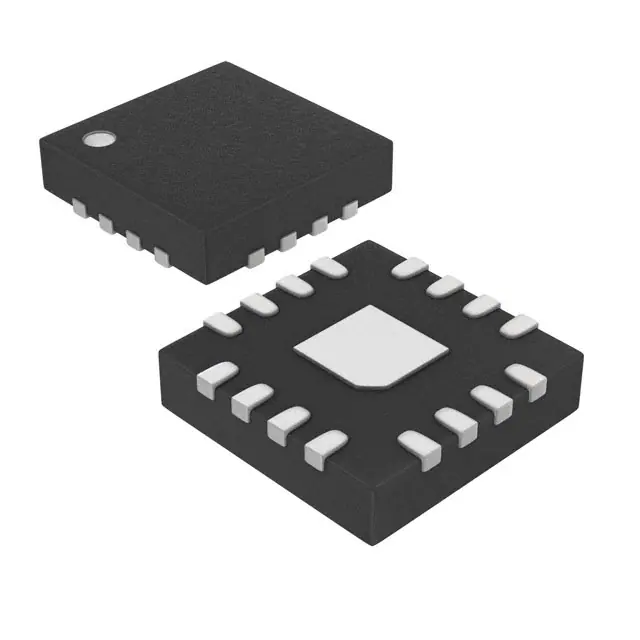

| Part Number | MAX4750ETE+T | MAX4754ETE+T | MAX4780ETE+T | MAX4750EBE+T | MAX4750ETE+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 4 | 4 | 2 | 2 |
| On-State Resistance (Max) | 25Ohm | 850mOhm | 1Ohm | 25Ohm | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm | 100mOhm | 100mOhm | 100mOhm | 100mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 11V | 1.8V ~ 5.5V | 1.6V ~ 4.2V | 2V ~ 11V | 2V ~ 11V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 85ns, 45ns | 140ns, 50ns | 25ns, 10ns | 85ns, 45ns | 85ns, 45ns |
| -3db Bandwidth | 250MHz | 10MHz | 123MHz | 250MHz | 250MHz |
| Charge Injection | 9pC | 300pC | 5pC | 9pC | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF | 180pF, 300pF | 33pF, 60pF | 20pF, 20pF | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 4nA | 1nA | 100pA | 100pA |
| Crosstalk | -84dB @ 1MHz | -90dB @ 100kHz | -95dB @ 1MHz | -84dB @ 1MHz | -84dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFBGA, CSPBGA | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (3x3) | 16-UCSP (2x2) | 16-TQFN (4x4) |
