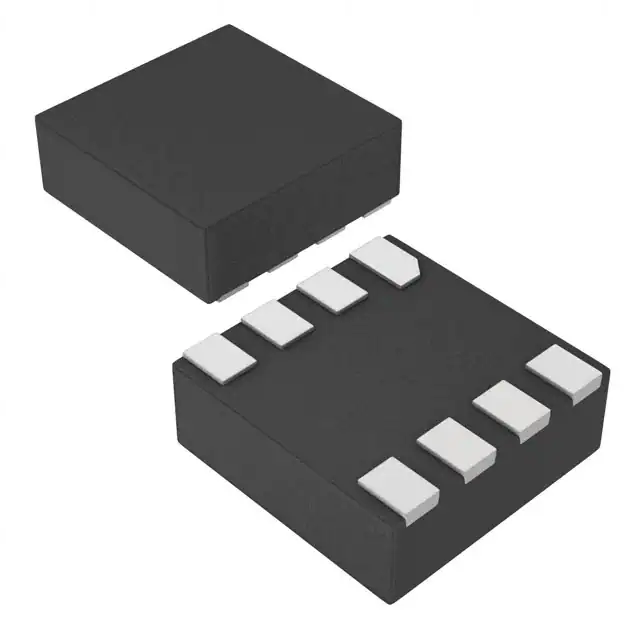

| Part Number | MAX4742ELA+T | MAX4743ELA+T | MAX4742EUA+T | MAX4741ELA+T | MAX4742EKA+T |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Active | Active | Active |
| Switch Circuit | SPST - NC | SPST - NO/NC | SPST - NC | SPST - NO | - |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | - |
| Number of Circuits | 2 | 2 | 2 | 2 | - |
| On-State Resistance (Max) | 800mOhm | 800mOhm | 800mOhm | 800mOhm | - |
| Channel-to-Channel Matching (ΔRon) | 50mOhm | 50mOhm | 50mOhm | 50mOhm | - |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V | - |
| Voltage - Supply, Dual (V±) | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 24ns, 16ns | 24ns, 16ns | 24ns, 16ns | 24ns, 16ns | - |
| -3db Bandwidth | 100MHz | 100MHz | 100MHz | 100MHz | - |
| Charge Injection | 28pC | 28pC | 28pC | 28pC | - |
| Channel Capacitance (CS(off), CD(off)) | 32pF, 32pF | 32pF, 32pF | 32pF, 32pF | 32pF, 32pF | - |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA | 1nA | - |
| Crosstalk | -110dB @ 1MHz | -110dB @ 1MHz | -110dB @ 1MHz | -110dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 8-WFDFN | 8-WFDFN | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-WFDFN | - |
| Supplier Device Package | 8-uDFN (2x2) | 8-uDFN (2x2) | 8-uMAX/uSOP | 8-uDFN (2x2) | - |
