| Part Number | MAX4737ETE+T | MAX4747ETE+T | MAX4737EBE+T | MAX4737ETE+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 3Ohm | 25Ohm | 4.5Ohm | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm | 100mOhm | 100mOhm | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 2V ~ 11V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V | - | - | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 80ns, 40ns | 85ns, 45ns | 80ns, 40ns | 80ns, 40ns |
| -3db Bandwidth | 300MHz | 250MHz | 300MHz | 300MHz |
| Charge Injection | 5pC | 9pC | 5pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF | 20pF, 20pF | 9pF | 9pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 100pA | 500pA | 500pA |
| Crosstalk | -110dB @ 1MHz | -84dB @ 1MHz | -110dB @ 1MHz | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

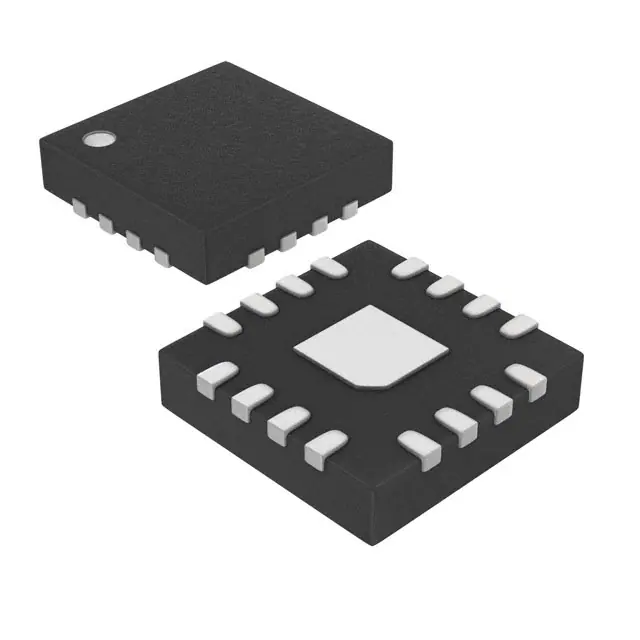

| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WFBGA, CSPBGA | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-UCSP (2x2) | 16-TQFN (4x4) |
