Please send RFQ , we will respond immediately.
| Part Number | MAX4704EGC+ | MAX4704EGC+T | MAX4734EGC+ | MAX4704ETC+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Obsolete | Obsolete |
| Switch Circuit | SP4T | SP4T | SP4T | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 4:1 | 4:1 |
| Number of Circuits | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | 60Ohm | 60Ohm | 800mOhm | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm | 1Ohm | 100mOhm | 1Ohm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.6V ~ 3.6V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 60ns, 20ns | 60ns, 20ns | 25ns, 20ns | 60ns, 20ns |
| -3db Bandwidth | 200MHz | 200MHz | 90MHz | 200MHz |
| Charge Injection | 2pC | 2pC | 60pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF | 7pF | 33pF, 117pF | 7pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 1nA | 100pA |
| Crosstalk | -90dB @ 1MHz | -90dB @ 1MHz | -56dB @ 1MHz | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

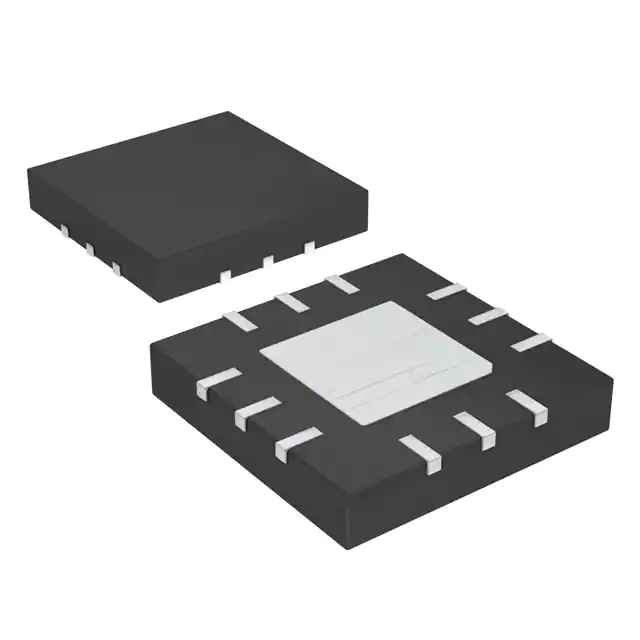

| Package / Case | 12-VFQFN Exposed Pad | 12-VFQFN Exposed Pad | 12-VFQFN Exposed Pad | 12-WFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (3x3) | 12-QFN (3x3) | 12-QFN (3x3) | 12-TQFN (3x3) |
