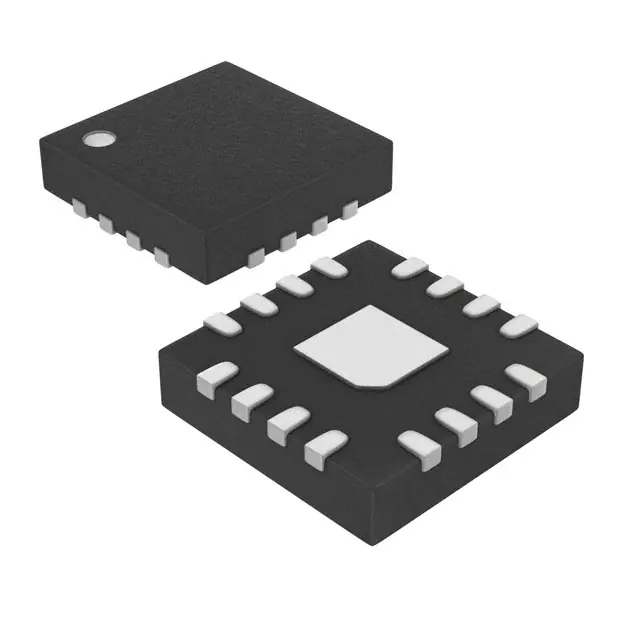

| Part Number | MAX4699ETE+T | MAX4691ETE+T | MAX4692ETE+T | MAX4693ETE+T | MAX4694ETE+T | MAX4699ETE+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Switch Circuit | DPDT | - | SP4T | SPDT | SPDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 8:1 | 4:1 | 2:1 | 2:1 | 2:2 |
| Number of Circuits | 2 | 1 | 2 | 3 | 4 | 2 |
| On-State Resistance (Max) | 75Ohm | 70Ohm | 70Ohm | 70Ohm | 70Ohm | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm | 2Ohm | 2Ohm | 2Ohm | 2Ohm | 2Ohm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 2.7V ~ 11V | 2.7V ~ 11V | 2.7V ~ 11V | 2.7V ~ 11V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | ±2V ~ 5.5V | ±2V ~ 5.5V | ±2V ~ 5.5V | ±2V ~ 5.5V | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 20ns | 300ns, 100ns | 300ns, 100ns | 300ns, 100ns | - | 35ns, 20ns |
| -3db Bandwidth | 250MHz | - | - | - | - | 250MHz |
| Charge Injection | 0.5pC | 0.1pC | 0.1pC | 0.1pC | 0.1pC | 0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF | 9pF, 68pF | 9pF, 68pF | 9pF, 68pF | - | 8pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 1nA | 1nA | 1nA | 1nA | 500pA |
| Crosstalk | -79dB @ 1MHz | -75dB @ 100kHz | -75dB @ 100kHz | -75dB @ 100kHz | -75dB @ 100kHz | -79dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) |
