| Part Number | MAX4697EBT-T | MAX4696EBT-T |
|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | SPST - NC | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 20Ohm | 20Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm | 1Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns | 40ns, 20ns |
| -3db Bandwidth | 200MHz | 200MHz |
| Charge Injection | 8pC | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 15pF | - |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA |
| Crosstalk | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |

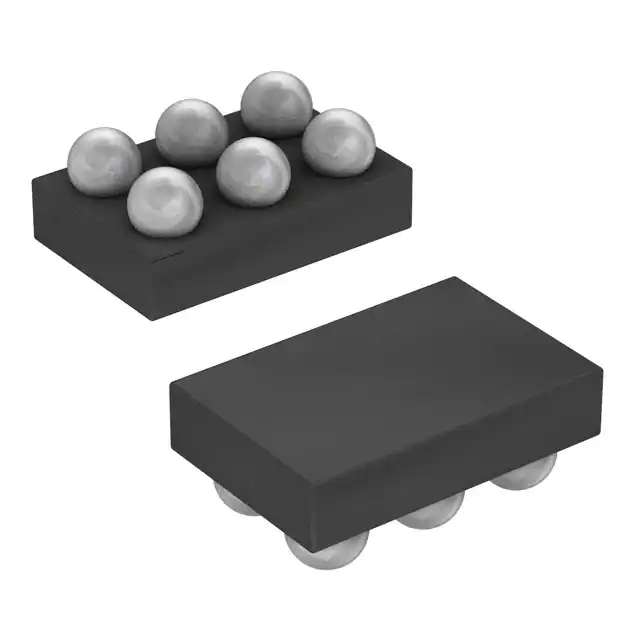

| Package / Case | 6-WFBGA, WLBGA | 6-WFBGA, WLBGA |
| Supplier Device Package | 6-WLP | 6-WLP |
