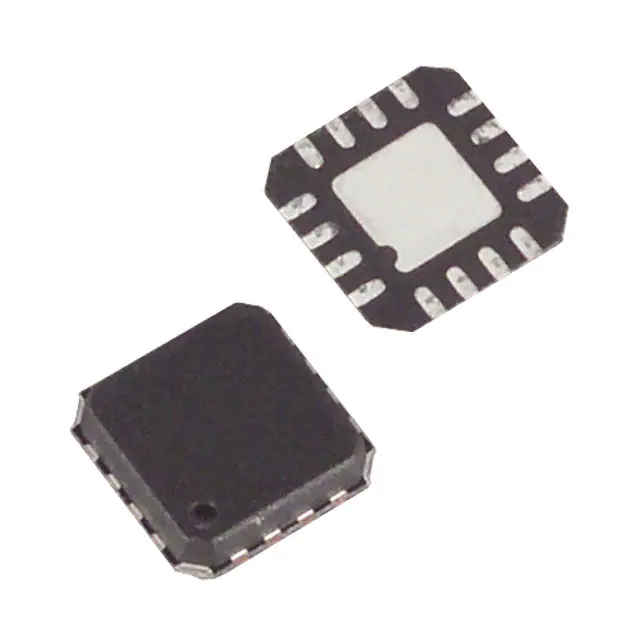

| Part Number | MAX4692EGE+ | MAX4692ETE+ | MAX4692EGE+T | MAX4693EGE+ | MAX4691EGE+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active |
| Switch Circuit | SP4T | SP4T | SP4T | SPDT | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 4:1 | 2:1 | 8:1 |
| Number of Circuits | 2 | 2 | 2 | 3 | 1 |
| On-State Resistance (Max) | 70Ohm | 70Ohm | 25Ohm | 25Ohm | 70Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm | 2Ohm | 2Ohm | 2Ohm | 2Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 11V | 2.7V ~ 11V | 2V ~ 11V, ±2V ~ 5.5V | 2V ~ 11V, ±2V ~ 5.5V | 2.7V ~ 11V |
| Voltage - Supply, Dual (V±) | ±2V ~ 5.5V | ±2V ~ 5.5V | 2V ~ 11V, ±2V ~ 5.5V | 2V ~ 11V, ±2V ~ 5.5V | ±2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 100ns | 300ns, 100ns | 80ns, 50ns | 80ns, 50ns | 300ns, 100ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | 0.1pC | 0.1pC | 1.8pC | 1.8pC | 0.1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 68pF | 9pF, 68pF | 9pF, 36pF | 9pF, 20pF | 9pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 2nA | 2nA | 1nA |
| Crosstalk | -75dB @ 100kHz | -75dB @ 100kHz | -84dB @ 100kHz | -84dB @ 100kHz | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad | 16-WQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) | 16-TQFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) |
